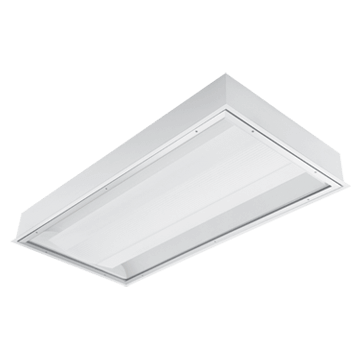

MedMaster for Behavioral Health
| Model #: | MMPCAIE |
|---|---|
| Features: |
|
| Application(s): | Behavioral Health |
| Lens Type(s): | .187" Clear Polycarbonate .250" Clear Polycarbonate .375" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | One-piece die-formed prime grade material as specified – see Ordering Information. Corners continuously seam welded and smooth with no post grinding (TIG). |
|---|---|
| Electrical |
Available 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, or 347V 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); 330µA max. source current.
|
| Fasteners | Torx® head with center pin hardened security screws. Fully recessed. |
| Finish | TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional antimicrobial finish. |
| Gasket | Closed cell Neoprene/EPDM/SBR gasket seals door to housing. |
| Housing | Die-formed prime grade material as specified – see Ordering Information. TIG and spot welded construction. |
| Installation | FLANGE MOUNT: – Mounting yoke brackets standard. Fixture mounting hardware included. Install Frame Accessory positively locates yoke brackets within ceiling opening; assures alignment of fixture. No measuring for yoke required; no drywall backing required (included with frame assembly). SURFACE MOUNT: – Four .312” diameter holes. |
| Lamp Shielding | Exam compartment shielded by perforated metal diffusers with pearlescent overlays and utilizes optically designed reflectors. Ambient compartment shielded by pearlescent acrylic diffuser. |
| Lens | LENS: As specified – maximum thickness .375"– see Ordering Information. |
| Listings | Luminaire is certified to UL standards by Intertek Testing Labratory for Wet Locations and non-IC installations. CCEA approved (Flange). NSF2 Splash/Non-Food Zone. |
| Patent | U.S.Patent No. D562,767 – Low Voltage Controller (LVC) option. |
| Warranty | Limited five (5) year warranty on LED lamps. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
