MedMaster for Behavioral Health

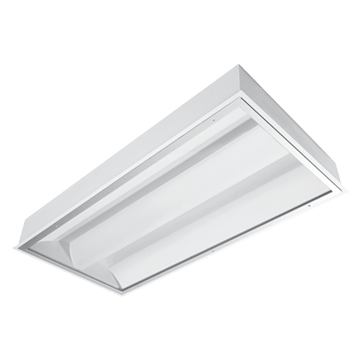

MMPCADE Main Image
MMPCADE Main ImageMMPCADE24 Main Image
Model #: MMPCADE
Features:
  • Ceiling mount – recessed flange or surface; 2'×2'
  • Heavy-duty one-piece TIG and spot welded housing
  • Doorframe with Polycarbonate lens secured with Torx® fasteners for security
Application(s):Behavioral Health
Lens Type(s):.187" Clear Polycarbonate
.250" Clear Polycarbonate
.375" Clear Polycarbonate
Lamp Type(s):LED
Linear Fluorescent
Size(s):2'x2'
2'x4'
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

DoorframeOne-piece die-formed prime grade material as specified – see Ordering Information. Corners continuously seam welded and smooth with no post grinding (TIG).
ElectricalLED: Available 3000K, 3500K, 4000K and 5000K color temperatures with 3-step MacAdam variation allowance, 82 CRI. 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); 330µA maximum source current per circuit. LF: Fluorescent electronic 120/277V ballasts high power factor (<10% THD). See Ordering Information for optional equipment. Lamps by others. Exam area NEC compliant with isolated wiring compartment for auxiliary branch circuit feed. Optional LVCD control provides low-voltage patient interface, controlling the ambient function independently with dimming control, and the exam function independently without dimming
FastenersTorx® head with center pin hardened security screws. Fully recessed.
FinishTGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional antimicrobial finish.
GasketClosed cell Neoprene/EPDM/SBR gasket seals door to housing.
HousingDie-formed prime grade material as specified – see Ordering Information. TIG and spot welded construction.
InstallationFLANGE MOUNT: – Mounting yoke brackets standard. Fixture mounting hardware included. Install Frame Accessory positively locates yoke brackets within ceiling opening; assures alignment of fixture. No measuring for yoke required; no drywall backing required (included with frame assembly). SURFACE MOUNT: – Four .312" diameter holes.
Lamp ShieldingExam compartment shielded by frosted linear prismatic high impact acrylic. Ambient compartment shielded by 100% internal fluted high impact acrylic.
LensAs specified – maximum thickness .375"– see Ordering Information.
ListingsUL and CUL Listed for Wet Location. UL certified IP65 per IEC 60598.
PatentU.S. Patent No. 9320117

This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
