MedMaster for Behavioral Health

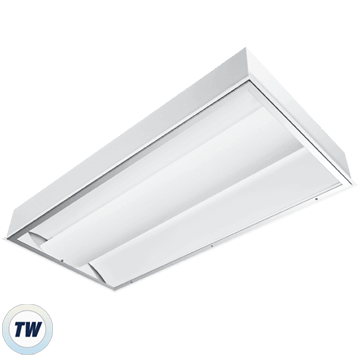

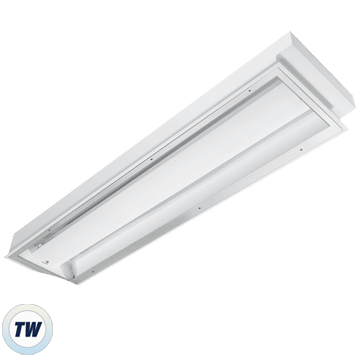

| Model #: | MMAC-TW |
|---|---|
| Features: |
|
| Application(s): | Behavioral Health |
| Lens Type(s): | .187" Clear Polycarbonate .250" Clear Polycarbonate .375" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | One-piece die-formed prime grade material as specified – see Ordering Information. Doorframe supported to housing with two aircraft cables. Corners continuously seam welded and smooth with no post grinding (TIG). |
|---|---|
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. Refer to charts on page 2 for further details. |
| Fasteners | Torx® head with center pin hardened security screws. Fully recessed. |
| Finish | GIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional antimicrobial finish. |
| Gasket | Closed cell Neoprene/EPDM/SBR gasket seals door to housing. |
| Housing | Die-formed prime grade material as specified – see Ordering Information. TIG and spot welded construction. |
| Installation | SURFACE MOUNT: Four .312" diameter holes. FLANGE MOUNT: Yoke mounting hardware & brackets included. Install Frame positively locates yoke brackets within ceiling opening assures alignment of fixture. Install frame has no need for drywall backing. Backing is supplied on the frame brackets. |
| Lamp Shielding | Perforated metal (white TGIC polyester powder coat finish) with pearlescent acrylic diffuser. |
| LED Module | Serviceable tunable-white, mid-power LED array provides 2700K through 6500K CCT range with a two-point path. Minimum 82 CRI standard (R9 >20) with optional minimum 90 CRI (R9 >50). |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location and non-IC recessed installation. ETL certified IP65 per IEC 60598. NSF2 Splash/Non-Food Zone. Photometry tested to IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. Ligature resistant construction. Build America, Buy America Act compliant. |
| Optics | Extruded high-efficiency frosted DR acrylic inner diffuser. Clear impact-resistant outer lens as specified—see Ordering Information. |
| Patent | U.S. Patent No. D562,767 – Low Voltage Controller (LVC) option. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
REVIT Files

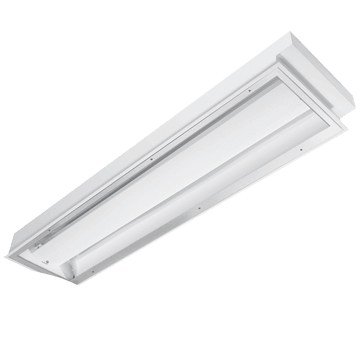

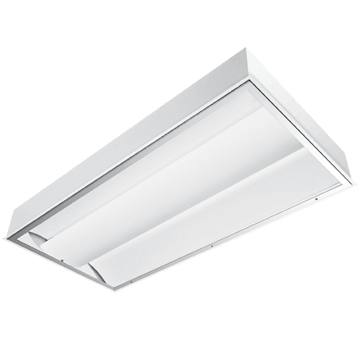

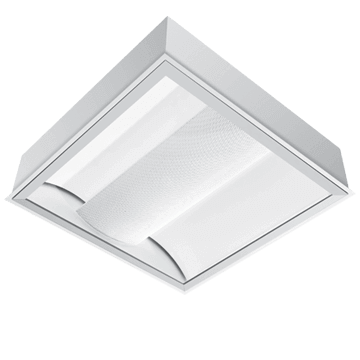

| Model #: | MMAC |
|---|---|
| Features: |
|
| Application(s): | Behavioral Health |
| Lens Type(s): | .187" Clear Polycarbonate .250" Clear Polycarbonate .375" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | One-piece die-formed prime grade material as specified – see Ordering Information. Doorframe supported to housing with two aircraft cables. Corners continuously seam welded and smooth with no post grinding (TIG). |
|---|---|
| Electrical | Available 3000K, 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (0.95 PF). Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 330µA maximum source current. |
| Fasteners | Torx® head with center pin hardened security screws. Fully recessed. |
| Finish | GIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional antimicrobial finish. |
| Gasket | Closed cell Neoprene/EPDM/SBR gasket seals door to housing. |
| Housing | Die-formed prime grade material as specified – see Ordering Information. TIG and spot welded construction. |
| Installation | SURFACE MOUNT: Four .312" diameter holes. GRID MOUNT: Designed for 1" and 1.5" grid. (Housing includes hanging brackets to secure housing with wire to super structure). FLANGE MOUNT: Yoke mounting hardware & brackets included. Install Frame and Plaster Frames both positively locates yoke brackets within ceiling opening assures alignment of fixture. Install frame has no need for drywall backing; backing is supplied on the frame brackets. |
| Lamp Shielding | Perforated metal (white TGIC polyester powder coat finish) with pearlescent acrylic diffuser. |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Locations and non-IC recessed installations. ETL certified IP65 per IEC 60598. NSF2 Splash/Non-Food Zone. Ligature resistant construction. Build America, Buy America Act compliant. |
| Optics | Extruded high-efficiency frosted DR acrylic inner diffuser. Clear impact-resistant polycarbonate outer lens as specified—see Ordering Information. |
| Patent | U.S. Patent No. 9320117 |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
REVIT Files

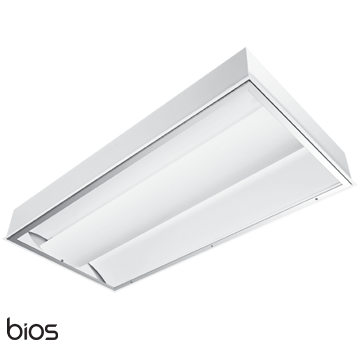

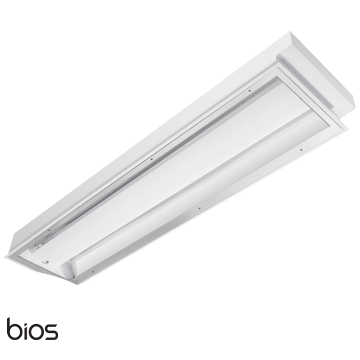

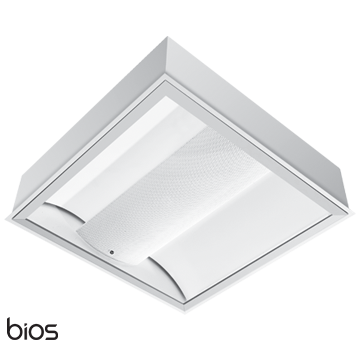

| Model #: | MMAC-BIOS |
|---|---|
| Features: |
|
| Application(s): | Behavioral Health |
| Lens Type(s): | .187" Clear Polycarbonate .250" Clear Polycarbonate .375" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | One-piece die-formed prime grade material as specified – see Ordering Information. Doorframe supported to housing with two aircraft cables. Corners continuously seam welded and smooth with no post grinding (TIG). Phillips head stainless steel fasteners secure door to housing – eight (8) for (1x4, 2x2) or ten (10) for (2x4). Extruded closed cell gasket seals doorframe to housing. Outer lens sealed to doorframe with a vinyl gasket. |
|---|---|
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Biological Static: Serviceable, constant-current single channel driver with single analog (0-10V) control input for intensity. 1-100% range with dim to dark capabilities and a linear dimming curve. Biological Dynamic: Serviceable constant-current driver with the BIOS Dynamic Bio-Dimming™ module keeps light output constant while reducing melanopic lux. Single analog (0-10V) control input. 1-100% dimming range with dim-to-dark capabilities and a linear dimming curve. Dimming from 100-75% reduces CCT by 500K, dimming below 75% reduces light level. Biological Tunable: Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. |
| Fasteners | Torx® head with center pin hardened security screws. Fully recessed. |
| Finish | GIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional antimicrobial finish. |
| Gasket | Closed cell Neoprene/EPDM/SBR gasket seals door to housing. |
| Housing | Die-formed prime grade material as specified – see Ordering Information. TIG and spot welded construction. |
| Installation | SURFACE MOUNT: Four .312" diameter holes. FLANGE MOUNT: Yoke mounting hardware & brackets included. Install Frame positively locates yoke brackets within ceiling opening assures alignment of fixture. Install frame has no need for drywall backing. Backing is supplied on the frame brackets. |
| LED Module | Serviceable static, dynamic or tunable mid-power Gen 2 BIOS Biological LED modules. Biological Static, Biological Dynamic, and Biological Tunable LED source with blue spectrum peak at 490nm and higher melanopic ratio. CRI 80+ with R9 > 90. Dynamic features 500K downward CCT shift when dimmed for evening applications requiring lower melanopic ratio. Tunable features 2700K CCT for evening applications. Refer to table for specific melanopic values. |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location and non-IC recessed installation. ETL certified IP65 per IEC 60598. NSF2 Splash/Non-Food Zone. Photometry tested to IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. Ligature resistant construction. |
| Optics | Extruded high-efficiency frosted DR acrylic inner diffuser. Clear impact-resistant outer lens as specified—see Ordering Information. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
