TD17

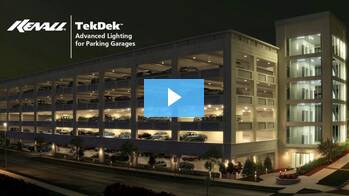

TekDek

TD17 Main Image
TD17 Main ImageTD17 Bird GuardTD17 Heat SinkTD17 HousingTD17 TK Mounting
Model #: TD17
Features:
  • Textured tertiary lens for glare reduction and up-light feature to eliminate “cave-effect”
  • Optical patterns designed for covered parking structures
  • Outputs ranging from 5,507 lm to 11,470 lm
  • Compatible with TekLink™ lighting control technology
  • Patented thermal management
  • 5 Year limited product warranty
  • 3G Tested
Application(s): Parking Garage
Parks and Recreation
Multifamily Housing
Stairwells
Schools and Universities
Transportation Platforms
Exteriors and Entryways
Food Processing
Lens Type(s): Textured Acrylic
Textured Polycarbonate
Lamp Type(s): LED
Size(s): 17"
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

Distribution TypesType V-Narrow or V-Square roadway distributions available.  UV-stabilized, high-impact resistant injection-molded clear textured 100% DR acrylic or polycarbonate tertiary lens.
ElectricalServiceable high-brightness LED array.  See Ordering Information for color temperature and CRI options.  70 CRI minimum.  120-277 VAC, 347VAC and 480VAC 50/60Hz single-phase input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 90% electrical efficiency.  0-10V dimming protocol with 0-100% range, 0.6mA source current.  Replaceable surge suppressor rated to 20kA/kV per IEEE/ANSI C62.41 Cat. A.  EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
HousingMarine-grade die-cast aluminum and UV-stabilized polycarbonate construction.  Standard TGIC polyester power coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117.  See Ordering Information for available finishes. Closed-cell silicone gasketing seals all housing component interfaces.  Die-cut closed-cell neoprene self-adhesive gasket seals housing to mounting surface (DTS).
ListingsLuminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP65 rating per IEC 60598. Ambient temperature rating is -40°C to 50°C (55°C on 30L/47L). Passes 3G vibration test per ANSI C136.31-2001. Certain versions of this product are Designlights Consortium (DLC) qualified. Consult factory and check the DLC Qualified Products List here for listed configuration details.
Lumen DataTD17 Lumen Data
MountingDirect-to-surface (DTS) mounting over recessed junction box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit.  See Ordering Information for selection. Housing access secured via tamper-resistant Torx™ fasteners.
PatentMultiple U.S. Patents issued and pending.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory.  For photometric data, please go to www.kenall.com.
TekLink TL1000/2000An adaptive lighting control system with wired or wireless communication between system nodes.  In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, reporting and notifications.  Meets CA Title 24-2013 and ASHRAE 90.1-2013 requirements.
TekLink TL2000PSAn adaptive lighting control system utilizing an embedded image sensor with wireless communication to bridge. The image sensor provides advanced capability with video analytics, supporting car counting data reporting and standard lighting control features for occupancy detection and light level sensing.
TekLink TL50An independent lighting control system integral to the luminaire, featuring its own occupancy sensor, daylight harvesting and adjustable time-out/dimming settings.
WarrantyLimited five (5) year warranty.

This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin.
