Indigo-Clean

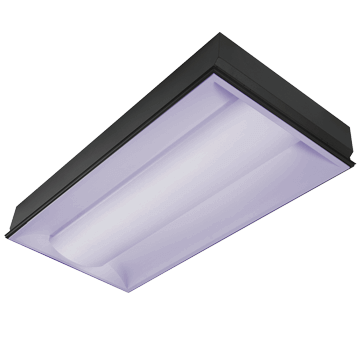

MEIC_HF01.pngMEIC24 Main Image
Model #: MEIC
Features:
  • Two operational modes: Ambient White Disinfection Mode & Indigo Disinfection Mode
  • Recessed ceiling mount – grid or flange; 2'×2' and 2'×4'
  • Stands up to rigorous cleaning protocols
  • Tool-less access for relamping and maintenance
  • Not intended for medical use
Application(s):Critical Environments
Lens Type(s):Frost High Impact Acrylic
Lamp Type(s):LED
Size(s):2'x2'
2'x4'
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

ControlsDisinfection switching mode determined via internal low-voltage device based upon input received by provided external IC100 room control system.
ElectricalServiceable composite-bodied mid-power white LED array and high-power 405 nm indigo LED array. Available 3700K and 4300K color temperatures with maximum 3-step MacAdam variation allowance. Minimum 80 CRI standard with optional minimum 90 CRI available. 120/277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current drivers (<10% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range with dim-to-dark capabilities in White Disinfection Mode. 700 μA maximum source current. Two operational modes: White Disinfection Mode is a white LED array for ambient lighting plus simultaneous lowpower 405nm indigo array for low-level continuous environmental disinfection. Indigo Disinfection Mode is a high power 405nm Indigo LED array for continuous environmental disinfection. Operational mode determined via internal low-voltage device based upon input received by provided external IC100 room control system.
Housing20-gauge CRS. One-piece seam-welded construction. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours.
Housing Flange18-gauge CRS, standard 4-piece construction, spot-welded to housing. Mitered and welded corners.
InstallationGrid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit.
Lamp ShieldingFully gasketed, sealed luminous shield of impact resistant DR acrylic.
ListingsUL and CUL Listed for Wet Location. UL certified IP64 per IEC 60598. NSF2 Splash/Non-Food Zone. CCEA Approved.
PatentIndigo-Clean products and technology covered by U.S. Patent No. US 9,039,966 and US 8,398,264. Product may also be covered by patents found at www.kenall.com/patents. Other patents pending.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard. For additional photometric data, please contact Indigo-Clean@Kenall.com.
Reflector/Lens Assembly20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours.
WarrantyOne (1) year warranty against defects in materials and workmanship. Five (5) year warranty on LEDs and driver for defects resulting in a fixture lumen depreciation of 30% or greater.

This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
