MedMaster

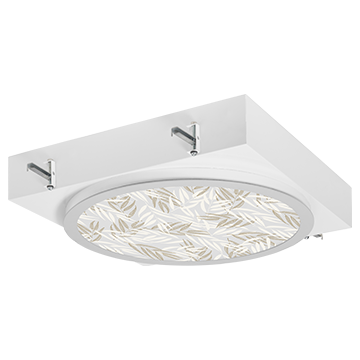

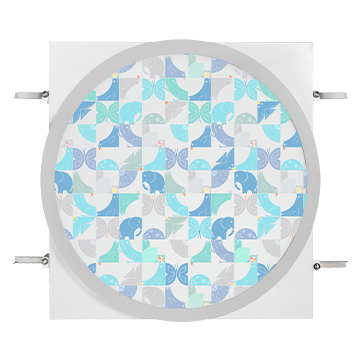

MCRT_HS01.pngMCRT_34_iMAGINE-tulips.pngMCRT_34_iMAGINE-willow-warm.pngMCRT_top_iMAGINE-animals.png
Model #: MCRT
Features:
  • 24" Round shape provides a differentiated aesthetic to a variety of healthcare lighting applications
  • Full backlit LED array and high diffusion lens provides uniformly-lit appearance
  • Standard IP64 and NSF2 rating without visible room-side fasteners
  • Suitable for recessed T-grid ceilings with minimal plenum ingress
  • Optional low-voltage controller (LVC) for patient room lighting control
  • Available with iMAGINE Series Graphics
Application(s):Patient Rooms
Lamp Type(s):LED
Size(s):24"
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

ControlsOptional LVC and LVCD provides a low-voltage patient interface, controlling the lamp source and optional night light with (LVCD) and without (LVC) dimming control.
Door AssemblyRoll-formed and butt-welded 6063-T5 extruded aluminum with TGIC polyester powder-coat finish in selected color, with five-stage pre-treatment.  Secured to housing with two internal torsion springs.  Closed cell silicone gasketing seals doorframe to housing.  High-efficiency diffused, impact-resistant acrylic lens is secured and sealed to doorframe.
Driver/Controls120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); maximum 165 µA maximum source current. Optional eldoLED ECOdrive DALI drivers with 1-100% range.
HousingFabricated 20ga CRS housing with white TGIC polyester powder-coat finish and five-stage pre-treatment.  Roll-formed and butt-welded 6063-T5 aluminum extruded collar for door attachment, finished in selected color option using TGIC polyester powder with five-stage pre-treatment.
InstallationSuitable for Type-IC recessed ceiling installation into 9/16" and 15/16" lay-in and tegular grid ceilings. Swing-out arms allow for securing of housing to grid structure.  Ceiling tile cutout template provided.  Ceiling tile by others.
LED ModuleServiceable mid-power LED array. Standard 80CRI min. (R9>0) with optional 90CRI min. (R9>50). See Ordering Information for available color temperature options. Optional nightlight in 590nm native amber or 2700K, 80CRI white.
Listings
Luminaire is certified to UL standards by Intertek Testing Laboratories for Type-IC and Wet Location installations. IP64 rating per IEC60598. NSF2 Splash/Non-Food Zone rated. Standard CCEA compliance.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For detailed photometric information, please visit www.kenall.com.
WarrantyLimited five (5) year warranty.

This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
