Low Profile Sconce
| Model #: | LPSR5 |
|---|---|
| Features: |
|
| Application(s): | Nursing Stations Patient Rooms Foyers and Lobbies Corridors |
| Lamp Type(s): | LED |
| Size(s): | 1' |
| Listings: |
Technical Specifications
| Electrical | High-brightness LED array with isolated thermal pads. Maximum 4-step MacAdam variation allowance. 80CRI minimum. 120-277VAC, 50/60Hz input with replaceable high power factor electronic constant-current driver (<20% THD, >0.90 PF). Standard 0-10V dimming with 10-100% range. Minimum 85% driver efficiency. EMC meets or exceeds FCC CFR Part I5. |
|---|---|
| Housing | Marine-grade die-cast aluminum frame. Frame serves as LED heat sink. Die-formed and welded aluminum driver enclosure, TGIC polyester powder coat finish with five-step pre-treatment; salt-spray test 1,000 hours. See Ordering Information for available finishes. Closed-cell gasketing at all housing interfaces. |
| Installation | One (1) concealed fastener secures frame assembly to mounting plate. Mount frame to provided recessed backbox. Specify new or remodel construction. |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location. NSF2 Splash/Non-Food Zone. ADA compliant. California OSHPD compliant. Photometry tested to the IESNA LM-79 standard by an ILAC/ISO17025 accredited laboratory. |
| Lumen Data | LPSR5 Lumen Data |

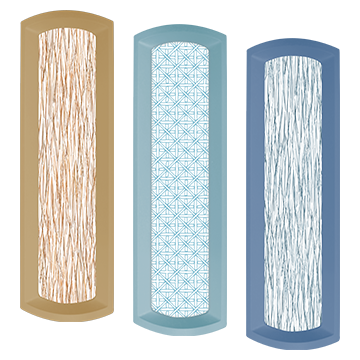

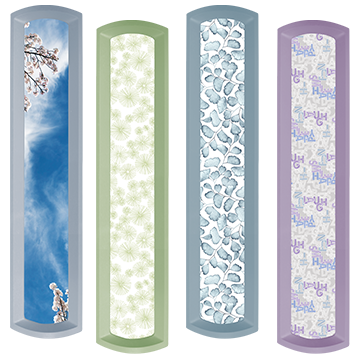

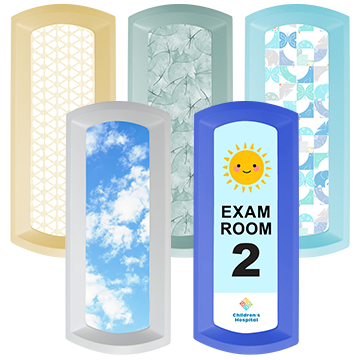

| Note | Custom decorative lenses and color-coordinated custom color frames are available. |
| Optical | Internal laser-etched acrylic light guide for uniform luminance from edge-lit LED light source. Thin film polycarbonate diffuser; white appearance when unlit (standard outer lens). Optional decorative lens finishes are internally laminated with a matte outer finish. |
| Patent | U.S. Patent No. D687,177 S, No. D687,178 S. |
| Warranty | One (1) year warranty against defects in materials and workmanship. Five (5) year warranty on LED lamps and driver for defects resulting in a fixture lumen depreciation of 30% or greater. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
