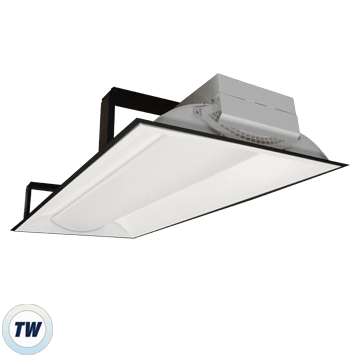

MedMaster General Ambient
| Model #: | AMB-TW |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Nursing Stations Schools and Universities Foyers and Lobbies Corridors Burn Units |
| Lens Type(s): | Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. Refer to charts on page 2 for further details. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to hanger bars and secured to housing. Mitered and welded corners. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Housing | 20-gauge CRS. One-piece construction. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit. |
| Lamp Shielding | Fully gasketed, sealed luminous shield of impact resistant DR acrylic. See Ordering Information for lens options. |
| LED Module | Serviceable tunable-white, mid-power LED array provides 2700K through 6500K CCT range with a two-point path. Minimum 82 CRI standard (R9 >20) with optional minimum 90 CRI (R9 >50). |
| Listings | UL and CUL Listed for Damp Location. NSF2 Splash/Non-Food Zone. |
| Optics | Extruded high-efficiency frosted DR acrylic diffuser. |
| Patent | U.S. Patent No. 8,511,850. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

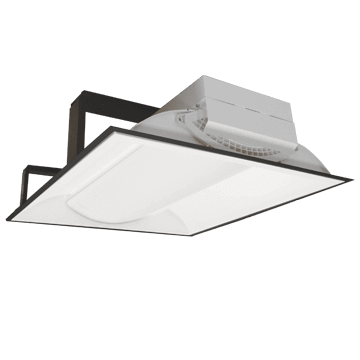

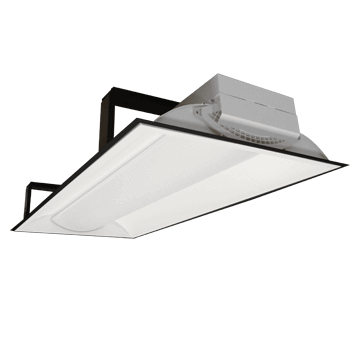

| Model #: | AMB |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Nursing Stations Schools and Universities Foyers and Lobbies Corridors |
| Lens Type(s): | Clear DR Acrylic with Internal Perforation Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Electrical | Available 3000K, 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 3-100% range. Consult factort for flourescent options. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to hanger bars and secured to housing. Mitered and welded corners. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Housing | 20-gauge CRS. One-piece construction. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Flange Mount: includes Frame Kit. |
| Lamp Shielding | Sealed luminous shield (impact resistant DR acrylic). See Ordering Information for lens options. |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for damp location. |
| Patent | U.S. Patent No. 9,320,117. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. (Reflectance 97%). Tool-free lamp access. White High Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

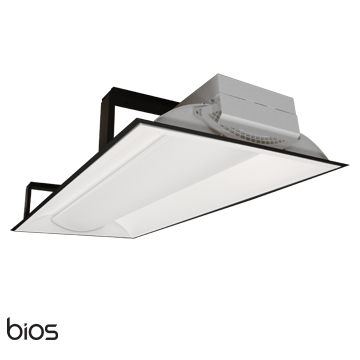

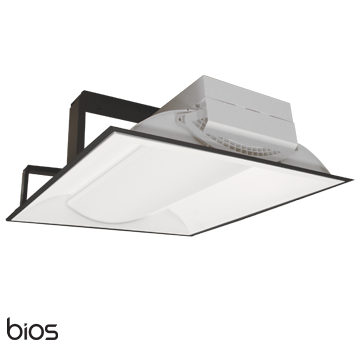

| Model #: | AMB-BIOS |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Nursing Stations Schools and Universities Foyers and Lobbies Corridors Burn Units |
| Lens Type(s): | Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Biological Static: Serviceable, constant-current single channel driver with single analog (0-10V) control input for intensity. 1-100% range with dim to dark capabilities and a linear dimming curve. Biological Dynamic: Serviceable constant-current driver with the BIOS Dynamic Bio-Dimming™ module keeps light output constant while reducing melanopic lux. Single analog (0-10V) control input. 1-100% dimming range with dim-to-dark capabilities and a linear dimming curve. Dimming from 100-75% reduces CCT by 500K, dimming below 75% reduces light level. Biological Tunable: Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to hanger bars and secured to housing. Mitered and welded corners. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Housing | 20-gauge CRS. One-piece construction. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit. |
| Lamp Shielding | Fully gasketed, sealed luminous shield of impact resistant DR acrylic. |
| LED Module | Serviceable static, dynamic or tunable mid-power Gen 2 BIOS Biological LED modules. Biological Static, Biological Dynamic, and Biological Tunable LED source with blue spectrum peak at 490nm and higher melanopic ratio. CRI 80+ with R9 > 90. Dynamic features 500K downward CCT shift when dimmed for evening applications requiring lower melanopic ratio. Tunable features 2700K CCT for evening applications. Refer to table for specific melanopic values. |
| Listings | UL and CUL Listed for Damp Location. NSF2 Splash/Non-Food Zone. |
| Optics | Extruded high-efficiency frosted DR acrylic diffuser. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
