Model #: CSETO14-Amber

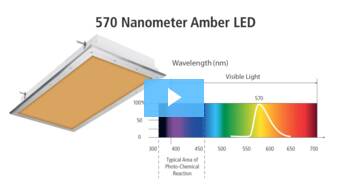

  • Narrow-spectrum 570nm amber LED circuit provides only high-purity light without UV for spectrally-sensitive applications
  • Recessed ceiling mount; grid or flange - 1'x4' & 2'x4'
  • Provides service from above to all electronics without entering the cleanroom
  • Durable construction resists damage from unintended foot traffic
  • 600lb load tested to reduce the hazard of foot traffic
  • One piece overlapping door provides easy cleaning and air-tight integrity of luminaire
Containment Areas
Research and Development
Meat Processing Facilities
Industrial Food Processing Facilities
Food Processing
Lamp Type(s):LED
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

Doorframe20-gauge type 304 stainless steel (#4 finish-post fabrication). One-piece 60° beveled perimeter construction. Continuous angle lens retention system. Mechanical guide for doorframe fastener alignment. Doorframe secured to housing with stainless steel aircraft cables and captive flush mounted Phillips head stainless steel fasteners (8) for 2×2, (12) for 2×4. Thumb screws used for FN option.
Doorframe GasketOne-piece closed cell extruded Nitrile gasket seals Doorframe to housing and ceiling structure.
ElectricalReplaceable 570nm amber (115 nm FWHM bandwidth) mid-power LED arrays produce no Ultraviolet and less than 0.019 watts of light below 480nm. Available separately circuited white mid-power LED arrays in 3500K, 4000K and 5000K color temperatures with maximum 3-step MacAdam variation allowance. Minimum 82 CRI. 120/277VAC or 347VAC, 50/60Hz electrical input with replaceable high power factor electronic, constant-current driver (<10% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range with dim-to-dark capabilities on white and amber circuits (non dim-to-dark with 347V; 330 μA maximum source current per circuit). Optional 0-10V dimming with 0.1-100% range and dim-to-dark capabilities via eldoLED SOLOdrive series driver (n/a 347V input; ≤0.5V required from dimming control for dim-to-dark operation; 600μA max. source current). White circuit and amber circuit can be independently powered and dimmed.
Housing20-gauge CRS or stainless steel. Hole-free, die formed and welded construction. 18-gauge housing flange with mitered and welded corners. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%.
InstallationNon-IC recessed ceiling mounting into walkable grid or walkable ceiling systems. Walkable ceiling (flange) installation suitable for ceilings up to 4" in thickness. Secured to ceiling with continuous perimeter compression to ceiling panel. Grid installation suitable for 1" and 1.5" T-bar ceilings. Supplemental support required. Housing is universal in construction between grid and flange-style mounting types.
ListingsLuminaire is certified to UL standards by Intertek Testing Laboratories for Wet Location. Certified IP6x from above ceiling (Dust Tight). Certified IP65 from below per IEC 60598. NSF2 Splash/Non-Food Zone. CCEA Approved. Suitable for FED-STD-209E/Class 1 (ISO 3), Biosafety Labs Rated BSL 3 and 4. as well as EU GMP Grade A Cleanrooms. Optional NSF2 Food Zone/Non-Contact.
OpticsSymmetric optic includes diffused, impact-resistant acrylic lens. FN option includes FDA approved Food Zone clear polycarbonate lens outer lens; diffused acrylic inner lens.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to
Top Access Door20-gauge CRS panel is cable hinged to housing for room-side removal. Panel is sealed with a closed cell gasket to housing inner surface. Protected from accidental foot traffic to 600lbs static load without damage when properly installed.
WarrantyLimited five (5) year warranty.

This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin.


Product Documentation

Installation Files

Photometry (IES)
