| Controls |
(18” Model) Optional embedded microwave motion sensor (MS) mounted behind center diffuser. Factory default is 30% dimming and 20min. timeout. Custom settings available upon request. Sensor operates at 5.8 GHz (continuous-wave radar) and provides 360° coverage. Switchable perimeter lamping utilizes Kenall-developed internal device to switch between white or colored sources based on voltage of sensing input (10V = white, ≤5V = color). When MS option is ordered in conjunction with switchable perimeter, the product is factory wired to have both lamp functions operate in white output state during occupancy. In periods of unoccupancy, the center lamp turns off and the perimeter changes to the specified color. This is intended to be a ‘night light’ or 'wildlife friendly' operational mode. To see the full list of third-party compatible controls, click here. |
|---|
| Electrical |
120-277VAC, 50/60Hz electrical input with serviceable high-power factor electronic, constant-current drivers (<20% THD, >0.90 PF). 347VAC input available in DIM1 driver configurations. DIM1: Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; independent dimming control of center and perimeter lamping functions. 0.2mA source current per luminaire, per dimming line. DALI: Optional DALI-2 DT6 driver with 1-100% dimming range without dim-to-dark capabilities. Independent addressing and control of lamping functions. DMX: DMXRDM compatible driver with 0.1-100% dimming range and dim-to-dark. (14” model) One four-channel driver powers both the static white center and the RGB perimeter lamp functions; four total DMX network addresses. (18” model) One driver powers the static white center and another driver powers the RGBW perimeter; five total DMX network addresses.
|
|---|
| Housing |
Die-cast aluminum baseplate and frontal heat sink trim. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000-hour salt spray test per ASTM B117. See Ordering Information for available finishes.
|
|---|
| Installation |
Suitable for surface wall or ceiling installations over recessed junction box. 0°C to 40°C ambient environments, unless otherwise noted. Anchored four-point mounting required. Trim assembly secured to baseplate with three (3) concealed, tamper-resistant Torx® fasteners.
|
|---|
| Lamping |

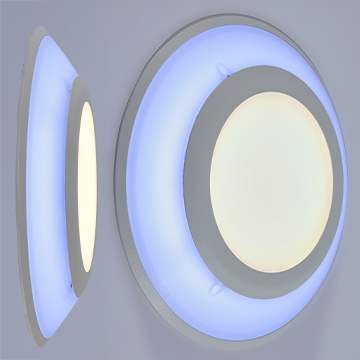

Center: 360° edge-lit illumination. Available 3000K, 3500K and 4000K white color temperatures with 3-step MacAdam variation allowance. Standard 80 CRI min, optional 90 CRI min. Perimeter: Circumferential back-lit lamping. Available matching color temperature source to center white light engine. Available static color source in 630 nm native red, 590 nm native amber, phosphor-converted mint or 500 nm cyan; inquire with factory on other available static color options. Available Switchable engine on 18” model provides white light and native amber or native red, controlled by internal device based on signal input; see Control for further description. Available RGB (red-green-blue) in 14” model for dynamic and mixed lighting scenes. 18” model features RGBW perimeter lamping which includes a 2500K, 70 CRI white LED for the broadest color gamut and white color matching; a 90 CRI center lamp color is recommended in conjunction. The RGB(W) package uses phosphor-converted red, phosphor-converted green and native blue source for longevity.
|
|---|
| Listings |
Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Locations; listing includes Emergency Battery Pack “LEL” option. NSF2 Splash/Non-Food Zone rated. Luminaire tested to an IK10 impact protection rating per IEC 60068-2-75:1997-08.
|
|---|
| Optics |
Injection-molded diffused UV-stabilized polycarbonate outer lenses for center and perimeter light engines. Center light engine utilizes inner acrylic light guide to provide uniformity from edge-lit light source.
|
|---|
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. |
|---|
| Warranty | Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage. |
|---|
