MedMaster Auracyl Sconce for MRI/Imaging Suites

MRIMAS8_HS01.pngMAS Corner DetailMAS Install Step1MAS Install Step2MAS Install Step3MAS813_front_iMAGINE-group-illustrated.pngMAS826_front_iMAGINE-group-illustrated.pngMAS838_front_iMAGINE-group-illustrated.pngMAS850_front_iMAGINE-group-illustrated.png
Model #: MRIMAS8
Features:
  • Surface wall mount – 8"W 13", 26", 38", 50" lengths
  • Non-ferrous marine-grade extruded aluminum construction
  • Sealed backlighting creates a pleasing visual accent and NSF2 listing
  • Standard antimicrobial finish for cleanability

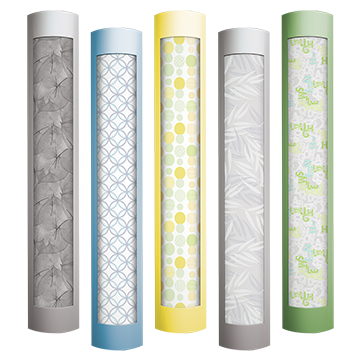

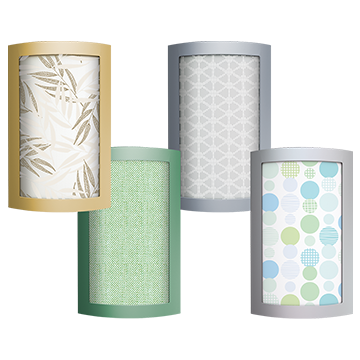

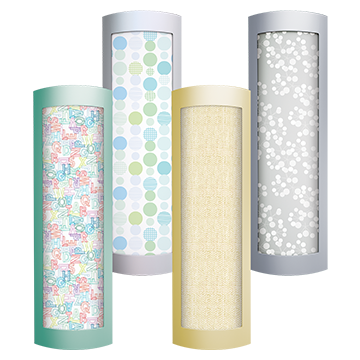

  • Available with iMAGINE Series Graphics
Application(s):MRI Imaging Suites
Lamp Type(s):LED
Size(s):8"x13"
8"x26"
8"x38"
8"x50"
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

ElectricalReplaceable high-brightness ANSI 3000K or 4000K LED array. Luminaire input
24V DC from remote-mounted, 120-240V AC, high power factor power supply (MRIPS-312
ordered separately). Dimming capability controlled through compatible 0-10V dimmer (supplied
by others). 10%-100% dimming range. MRI room EMI filter required (supplied by others).
HardwareOne non-ferrous stainless steel Phillips-head fastener standard; four fasteners with IP64 option for MRIMAS813 and MRIMAS826; six fasteners for MRIMAS838 and MRIMAS850. Internal brackets and fasteners are non-ferrous and non-corrosive.
HousingNon-ferrous marine grade extruded aluminum. Non-ferrous marine grade die-cast aluminum end caps. TGIC polyester powder coat finish – 5-stage pre-treatment; Salt spray test: 1,000 hours. Antimicrobial finish on all exposed components of installed luminaire.
Inner LensUV-stabilized, high impact resistant, extruded 100% DR/acrylic frost lens. Nominal thickness .100". Lens secured in place by lens frame.
InstallationStandard four-point mounting required on MRIMAS813 and MRIMAS826. Standard six-point mounting on MRIMAS838 and MRIMAS850. All power and signal wiring must be completely shielded in grounded conduit.
ListingsLuminaire is certified to UL1598 and UL8750 standards by Intertek Testing Services for Damp Location – covered ceiling and wall mount. MRIMAS813 is also UL and CUL listed. NSF2 Splash/Non-Food Zone. ADA compliant. Optional ETL certified IP64 per IEC 60598. Photometry tested to the IESNA LM-79-08 standard by an ILAC / ISO17025 accredited laboratory. Kenall certifies product by both Underwriters and Intertek Testing Laboratories.
Outer LensAcrylic translucent white lens standard. Nominal thickness .125". Optional iMAGINE series decorative lens – see Ordering Information.
PatentU.S. Patent No. 7,029,139; D610,294.
PhotometricsFor photometric information, go to www.kenall.com
ReflectorDie-formed non-ferrous marine grade aluminum. Full reflector/wire cover – 92% reflectivity.
WarrantyOne (1) year warranty against defects in materials and workmanship. Five (5) year warranty on LED lamps and driver for defects resulting in a fixture lumen depreciation of 30% or greater. Warranty is void if all wiring is not completely shielded in grounded conduit.

This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
