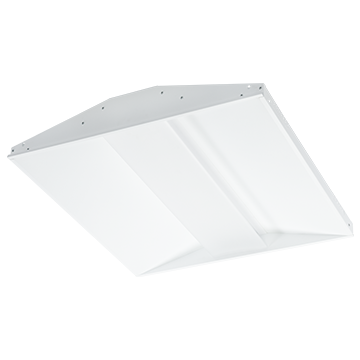

MedMaster General Ambient

Model #:	MRIGT
Features:	Low profile 2'×2' & 2'x4' recessed luminaire for grid ceilings Non-ferrous construction and remote power supplies provide safe operation with MRI equipment High-output, high-CRI LED lamp options NSF2 rating for ease of wipe-down cleaning
Application(s):	MRI Imaging Suites
Lens Type(s):	Frost High Impact Acrylic
Lamp Type(s):	LED
Size(s):	2'x2' 2'x4'
Listings:

Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Driver/Controls	Luminaire input 24VDC from remote-located 120-277VAC, high-power-factor power supply with EMI filter. Dimming line EMI filter required if utilizing dimming function. Internal non-switch mode DC-DC driver. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. See below for ordering information.
Housing	Die-formed 0.025" aluminum construction with non-ferrous hardware. Low-gloss white TGIC powder coat finish with five-stage pre-treatment.
Installation	Suitable for Type-IC recessed ceiling installation into 9/16”, 15/16” and slot-T lay-in grid ceilings. All power and signal wiring must be in completely grounded aluminum conduit. Light engine and internal driver are replaceable post-installation. MRI room EMI filters required (see Accessories below). Suitable for 0°C to 25°C ambient temperature environments.
Listings	Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location and recessed type IC installations. NSF2 Splash/Non-Food Zone.
Optics	Snap-in, one-piece extruded frost DR acrylic diffuser.
Photometrics	Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com.
Warranty	Limited five (5) year warranty.
