| Electrical | LED array available in multiple CCT and CRI combinations with a maximum 3-step MacAdam variation allowance. See Trim Ordering Information for available options. Luminaire input 24VDC from remote-located 120-277VAC, high-power-factor power supply with EMI filter. Dimming line EMI filter required if utilizing dimming function. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. |
|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
|---|
| Installation | All power and signal wiring must be in completely grounded aluminum conduit. Light engine and internal driver are replaceable post-installation. |
|---|
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratory for IC and Wet Location installations. IP64 rating per IEC60598. NSF2 Splash/Non-Food Zone. |
|---|
| Optical | Round or Square aperture. Diffused tempered-glass upper lens. Available with various reflector distribution patterns and finishes. Flush lens trim options include a clear impact-resistant acrylic lens. |
|---|
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
|---|

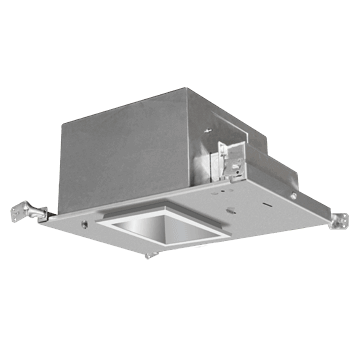

| Rough-In Frame | Die-formed aluminum construction. Vertically adjustable collar accommodates ceiling thicknesses up to 2", adjustable post-installation. Adjustable mounting bars for installation with wood and metal frame joists and T-grid ceiling systems spaced up to 24" on-center. Junction box accessible post-installation from above and below ceiling. (7) 1/2" knockouts. |
|---|
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Configurable with a Regressed or Flush lens trim that is secured to the Rough-In frame with hidden torsion springs. Closed-cell gasketing at ceiling flange. Anti-microbial finish standard on all exposed painted surfaces. See Trim Ordering Information for available options. |
|---|
| Warranty | Limited five (5) year LED warranty. |
|---|
