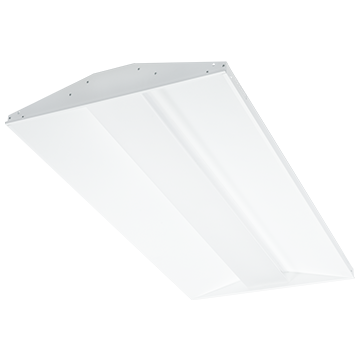

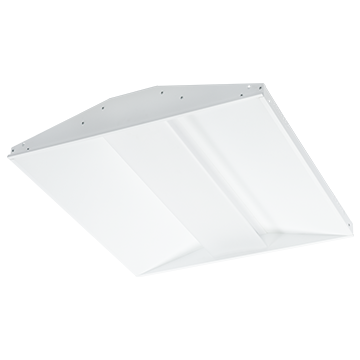

MedMaster General Ambient
| Model #: | MGT |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Nursing Stations Foyers and Lobbies Corridors |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls |
120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current driver (<10% THD, >0.90PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); maximum 165 μA source current.
|
|---|---|
| Housing | Die-formed 24-gauge steel construction. Low-gloss white TGIC powder coat finish with five-stage pre-treatment. |
| Installation |
Suitable for Type-IC recessed ceiling installation into 9/16”, 15/16” and slot-T lay-in grid ceilings and flanged drywall ceilings with included flange adapter kit. See Ordering Information for selection. Removable wiring access plate with (2) 7/8” Dia knockouts. Suitable for 0°C to 25°C ambient temperature environments.
|
| LED Module |
Serviceable mid-power LED array. Minimum 82 CRI standard (R9 >20). See Ordering Information for available color temperature options. Maximum 3-step MacAdam variation allowance.
|
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location and IC installations. NSF2 Splash/Non-Food Zone. RoHS compliant. |
| Optics | Snap-in, one-piece extruded frost DR acrylic diffuser. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
