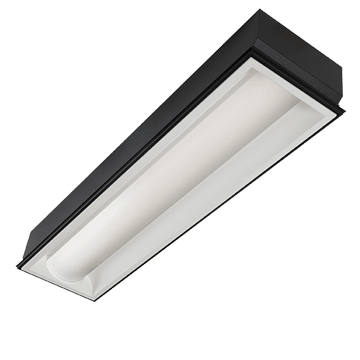

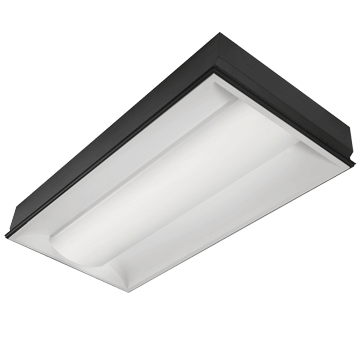

MedMaster Envela Recessed Luminaires
| Model #: | ME |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Restrooms Showers Nursing Stations Patient Rooms Foyers and Lobbies Corridors |
| Lens Type(s): | Clear DR Acrylic with Internal Perforation Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 1'x1' 2'x4' |
| Listings: |
Technical Specifications
| Electrical | LED: Available 3000K, 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 1-100% range with dim-to-dark capabilities (non dim-to-dark with 347V); 330µA maximum source current. LF: Fluorescent electronic 120, 277 or 347V ballasts high power factor (<10% THD). See Ordering Information for optional equipment. Lamps by others. Optional LVCD control provides low-voltage patient interface, controlling the primary light source independently with dimming control, and if ordered DLN and DLNA option independently without dimming. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to housing. Mitered and welded corners. |
| Housing | 20-gauge CRS. One-piece seam welded construction. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit. |
| Lamp Shielding | Fully gasketed, sealed luminous shield of impact resistant DR acrylic. See Ordering Information for lens options. |
| Listings | UL and CUL Listed for Wet Location. UL certified IP64 per IEC 60598. NSF2 Splash/ Non-Food Zone. Photometry tested to the IESNA LM-79-08 standard by an ILAC / ISO17025 accredited laboratory. CCEA Approved. |
| Lumen Data | ME22 Lumen Data |
| Patent | U.S. Patent No. 8,511,850. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Warranty | One (1) year warranty against defects in materials and workmanship. Five (5) year warranty on LED lamps and driver for defects resulting in a fixture lumen depreciation of 30% or greater. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
REVIT Files
Additional Resources

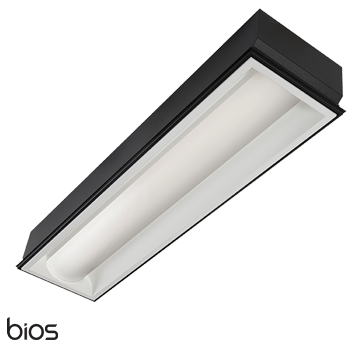

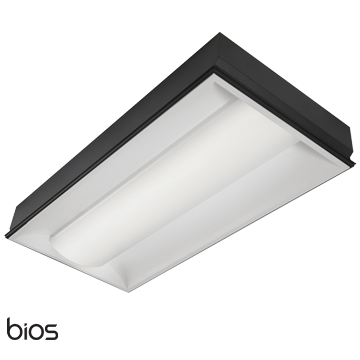

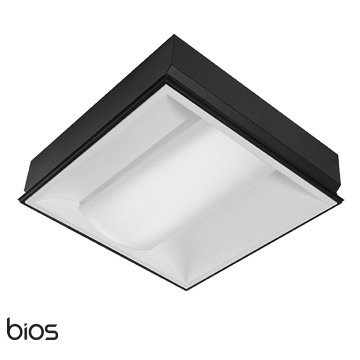

| Model #: | ME-BIOS |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Restrooms Showers Nursing Stations Patient Rooms Foyers and Lobbies Corridors |
| Lens Type(s): | Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Biological Static: Serviceable, constant-current single channel driver with single analog (0-10V) control input for intensity. 1-100% range with dim to dark capabilities and a linear dimming curve. Biological Dynamic: Serviceable constant-current driver with the BIOS Dynamic Bio-Dimming™ module keeps light output constant while reducing melanopic lux. Single analog (0-10V) control input. 1-100% dimming range with dim-to-dark capabilities and a linear dimming curve. Dimming from 100-75% reduces CCT by 500K, dimming below 75% reduces light level. Biological Tunable: Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to housing. Mitered and welded corners. |
| Housing | 20-gauge CRS. One-piece seam welded construction. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit. |
| Lamp Shielding | Fully gasketed, sealed luminous shield of impact resistant DR acrylic. See Ordering Information for lens options. |
| LED Module | Serviceable static, dynamic or tunable mid-power Gen 2 BIOS Biological LED modules. Biological Static, Biological Dynamic, and Biological Tunable LED source with blue spectrum peak at 490nm and higher melanopic ratio. CRI 80+ with R9 > 90. Dynamic features 500K downward CCT shift when dimmed for evening applications requiring lower melanopic ratio. Tunable features 2700K CCT for evening applications. Refer to table for specific melanopic values. |
| Listings | UL and CUL Listed for Wet Location. UL certified IP64 per IEC 60598. NSF2 Splash/Non-Food Zone. CCEA Approved. |
| Optics | Extruded high-efficiency frosted DR acrylic diffuser. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Warranty | Limited five (5) year warranty on LED lamps. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
Additional Resources

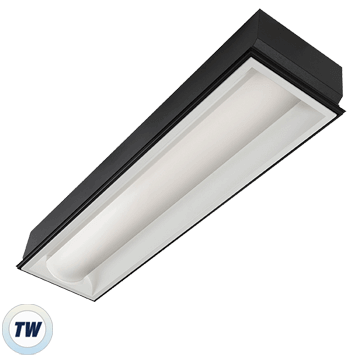

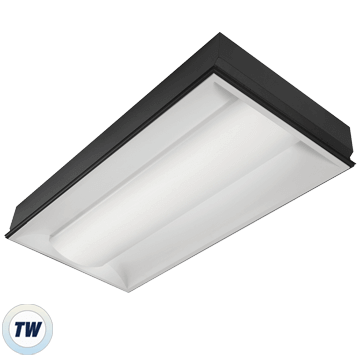

| Model #: | ME-TW |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Restrooms Showers Nursing Stations Patient Rooms Foyers and Lobbies Corridors |
| Lens Type(s): | Clear DR Acrylic with Internal Perforation Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Linear intensity and CCT adjustment profiles with 1-100% range and dim-to-dark capabilities on intensity. Optional DALI driver with 1-100% range and dim-todark intensity dimming with linear intensity and CCT adjustment profiles. |
|---|---|
| Flange | 18-gauge CRS, standard 4-piece construction, spot-welded to housing. Mitered and welded corners. |
| Housing | 20-gauge CRS. One-piece seam welded construction. Black TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Installation | Grid Mount: Designed for 1" and Slot-T grid. Includes hardware to secure hanger wire. Flange Mount: Includes Frame Kit. |
| Lamp Shielding | Fully gasketed, sealed luminous shield of impact resistant DR acrylic. See Ordering Information for lens options. |
| LED Module | Serviceable tunable-white, mid-power LED array provides 2700K through 6500K CCT range with a two-point path. Minimum 82 CRI standard (R9 >20) with optional minimum 90 CRI (R9 >50). |
| Listings | UL and CUL Listed for Wet Location. UL certified IP64 per IEC 60598. NSF2 Splash/Non-Food Zone. CCEA Approved. |
| Optics | Extruded high-efficiency frosted DR acrylic diffuser. |
| Patent | U.S. Patent No. 8,511,850. |
| Reflector/Lens Assembly | 20-gauge CRS. One-piece seam-welded construction. Tool-free lamp access. White High (92%) Reflectance Low Gloss TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours. |
| Warranty | Limited five (5) year warranty on LED lamps. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
