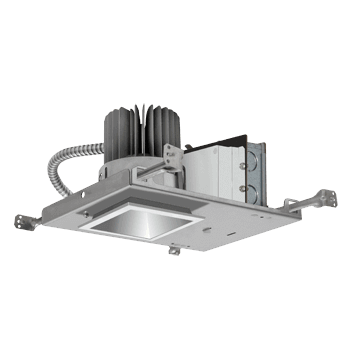

MedMaster Downlights
| Model #: | MDL4 |
|---|---|
| Features: |
|
| Application(s): | Pharmaceutical Nursing Stations Patient Rooms |
| Lens Type(s): | .125" High-Impact Clear Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Electrical | LED source available in multiple CCT and CRI combinations with a maximum 3-step MacAdam variation allowance. See Trim Ordering Information for available options. 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.2mA maximum source current. Optional eldoLED ECOdrive DALI-2/LEDcode2 driver with 1-100% range. |
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| Listings |
Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP64 and IP65 rating per IEC60598. NSF2 Splash/Non-Food Zone. Optional CCEA compliance.
|
| Optical | Round or Square aperture. Clear tempered-glass upper lens. Flush lens trim options include a clear impact-resistant acrylic lens continuously sealed to the trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Configurable with an IP64-rated Regressed or Flush lens trim that is secured to the Rough-In frame with hidden torsion springs, and an IP65 Flush lens trim secured with three (Round) or four (Square) Phillips-head, captive fasteners. Closed-cell gasketing at ceiling flange. Anti-microbial finish standard on all exposed painted surfaces. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

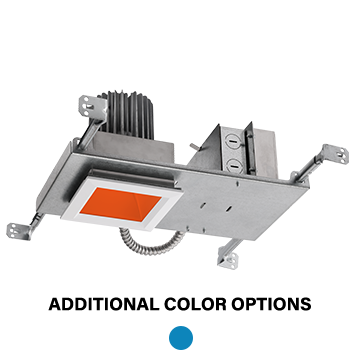

| Model #: | MDL4-NS |
|---|---|
| Features: |
|
| Application(s): | Pharmaceutical Nursing Stations Patient Rooms |
| Lens Type(s): | .125" High-Impact Clear Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Electrical | Phosphor-converted (PC) LED source provides Amber light with a 590nm nominal peak wavelength. Phosphor-converted InGaN-based source provides a higher output and efficacy as well as longer lifetime compared to native amber (AlInGaP-based) source for applications where a broader spectrum is acceptable. Native Blue LED option with 470nm nominal peak wavelength. 120-277VAC, 50/60Hz electrical input with serviceable constant current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.2mA maximum source current. Optional eldoLED ECOdrive DALI-2/LEDcode2 driver with 1-100% range. |
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| Listings |
Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP64 and IP65 rating per IEC60598. NSF2 Splash/Non-Food Zone. Optional CCEA compliance.
|
| Optical | Round or Square aperture. Clear tempered-glass upper lens. Flush lens trim options include a clear impact-resistant acrylic lens continuously sealed to the trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Configurable with an IP64-rated Regressed or Flush lens trim that is secured to the Rough-In frame with hidden torsion springs, and an IP65 Flush lens trim secured with three (Round) or four (Square) Phillips-head, captive fasteners. Closed-cell gasketing at ceiling flange. Anti-microbial finish standard on all exposed painted surfaces. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

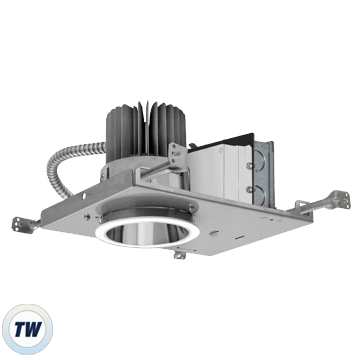

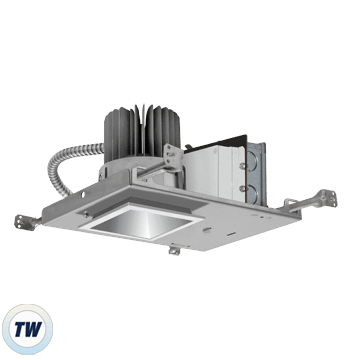

| Model #: | MDL4-TW |
|---|---|
| Features: |
|
| Application(s): | Pharmaceutical Nursing Stations Patient Rooms Burn Units |
| Lens Type(s): | .125" High-Impact Clear Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Driver/Controls | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Serviceable, constant-current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. Refer to charts on page 2 for further details. |
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| LED Module | Tunable-white LED array provides 2700K through 6500K CCT range with a two-point path. 3-step MacAdam variation allowance on each CCT. Minimum 82 CRI (R9 >0). |
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP64 and IP65 rating per IEC60598. NSF2 Splash/Non-Food Zone. Optional CCEA compliance. |
| Optical | Round or Square aperture. Diffused tempered-glass upper lens. Flush lens trim options include a clear impact-resistant acrylic lens continuously sealed to the trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Configurable with an IP64-rated Regressed or Flush lens trim that is secured to the Rough-In frame with hidden torsion springs, and an IP65 Flush lens trim secured with three (Round) or four (Square) Phillips-head, captive fasteners. Closed-cell gasketing at ceiling flange. Anti-microbial finish standard on all exposed painted surfaces. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
