SimpleSeal

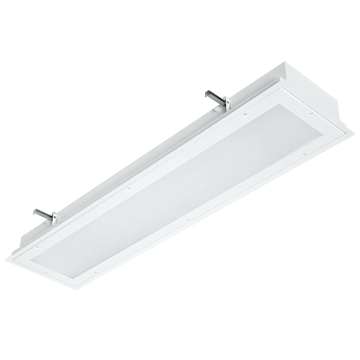

| Model #: | HASEDI |
|---|---|
| Features: |
|
| Application(s): | Locker Rooms Cafeterias Restrooms Stairwells Storage Facilities Corridors Sally Ports Exteriors and Entryways Natatoriums |
| Lens Type(s): | .187" Prismatic Polycarbonate .250" Clear Polycarbonate Specified Lens |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | 18-gauge CRS. One-piece inset construction welded corners. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Lens frame secured to housing with continuous hinge and 3 tamper-resistant stainless steel Torx® with center pin fasteners. |
|---|---|
| Electrical | Available 3500K, 4000K and 5000K color temperatures. 120-277VAC and 347VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); 660 µA maximum source current. |
| Housing | 20-gauge CRS. Hole-free, one-piece, seam-welded construction. Integral aluminum heat sink for thermal dissipation. 18-gauge housing flange with mitered and welded corners. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Adjustable swing-out mounting brackets standard. |
| Lens | See Lens Options below to specify lens material. Lens sealed to doorframe with silicone sealant and secured with continuous lens retention system. Lens orientation – smooth side out. Minimum .187" polycarbonate lens required (max. .375") for Peace of Mind Guarantee®. |
| Listings | UL and CUL Listed for Wet Location. UL certified IP65 per IEC 60598. CCEA approved. HASEDI is participating in Declare. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
REVIT Files
Additional Resources

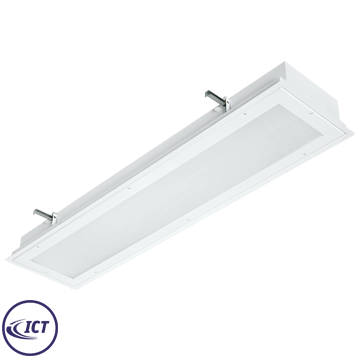

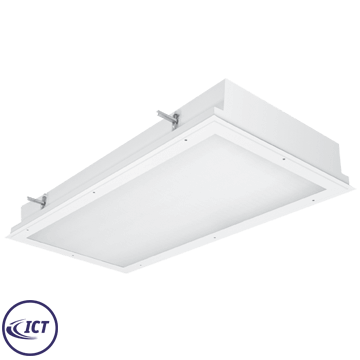

| Model #: | HASEDI-ICT |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Restrooms Stairwells Storage Facilities Corridors Sally Ports Exteriors and Entryways Gymnasiums and Multipurpose Rooms |
| Lens Type(s): | Symmetric, Diffused DR Acrylic inside lens .250" Clear Polycarbonate outside lens |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | 18-gauge CRS. One-piece inset construction with welded corners. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Optional 20 gauge type 304 stainless steel with 4B brushed finish. Lens frame secured to housing with continuous hinge and 3 tamper-resistant stainless steel Torx® with center pin fasteners. |
|---|---|
| Electrical | (Single- and Dual-Mode ICT) Serviceable mid-power white and 405nm Indigo LED array. Available 3200K, 3700K and 4300K color temperatures with 3-step MacAdam variation allowance. Minimum 82 CRI standard. 120-277VAC and 347VAC electrical input with serviceable high power factor electronic, constant-current drivers (<10% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. 495μA maximum source current. Single-Mode ICT provides a single, white disinfection operational mode. Dual-Mode ICT provides two operational modes based on room occupancy. White Disinfection Mode is a white LED array for ambient lighting plus a simultaneous low-power 405nm LED array for low-level, continuous and safe environmental disinfection. Indigo Disinfection Mode is a higher-level 405nm array for continuous safe environmental disinfection during periods of room vacancy. The operational mode is determined via internal low-voltage device based upon the input signal provided by an external control device/system. Luminaire dimming is overridden in this operational state. Refer to the Kenall Dual-Mode ICT Control Application Guide for further description. |
| Housing | 20-gauge CRS. Hole-free, one-piece, seam-welded construction.18-gauge housing flange with mitered and welded corners. White TGIC polyester powder coat finish – 5-step pretreatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Adjustable swing-out mounting brackets standard. Suitable installation into -30˚C to 40˚C ambient environments, unless otherwise noted. |
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. ETL certified IP65 per IEC60598. HASEDI is participating in Declare. |
| Optics | Diffused acrylic inner lens with 0.25" clear polycarbonate outer lens. Lens sealed to doorframe with silicone sealant and secured with continuous lens retention system. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. Peace of Mind Guarantee™. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
