Millenium Downlights

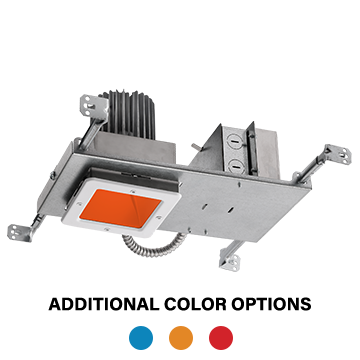

| Model #: | HADL4-NS |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Locker Rooms Multifamily Housing Dorm Rooms Schools and Universities Foyers and Lobbies Natatoriums Canopy |
| Lens Type(s): | .125" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Electrical |
Native 630nm Red, 590nm Amber, and 470nm Blue LED options (non phosphor-converted). Narrow bandwidth native sources provide optimal control over spectral emissions. Phosphor-converted (PC) Amber option at 590nm nominal peak wavelength. Phosphor-converted InGaN-based Amber source provides a higher output and efficacy as well as longer lifetime compared to the native AlInGaP-based Amber source for applications where a broader spectrum is acceptable. 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.2mA maximum source current. Optional eldoLED ECOdrive DALI-2/LEDcode2 driver with 1-100%.
|
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP65 rating per IEC60598. Optional CCEA compliance. |
| Optical | Diffused tempered-glass upper lens. 1/8" clear polycarbonate flush lens at ceiling trim with continuous seal to trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Flush lens trim secured with three (Round) or four (Square) Torx® tamper-resistant, captive fasteners. Closed-cell gasketing at ceiling flange. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty on PC Amber and Blue lamping. Three (3) year LED warranty on Red and Native Amber lamping. Peace of Mind Guarantee against breakage. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

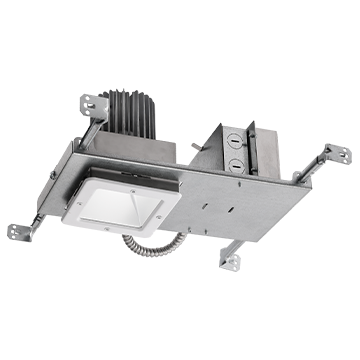

| Model #: | HADL4 |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Locker Rooms Multifamily Housing Dorm Rooms Schools and Universities Foyers and Lobbies Natatoriums Canopy |
| Lens Type(s): | .125" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Electrical |
LED source available in multiple CCT and CRI combinations with a maximum 3-step MacAdam variation allowance. See Trim Ordering Information for available options. 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.2mA maximum source current. Optional eldoLED ECOdrive DALI-2/LEDcode2 driver with 1-100% range.
|
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP65 rating per IEC60598. Optional CCEA compliance. |
| Optical | Clear tempered-glass upper lens. 1/8" clear polycarbonate flush lens at ceiling trim with continuous seal to trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Flush lens trim secured with three (Round) or four (Square) Torx® tamper-resistant, captive fasteners. Closed-cell gasketing at ceiling flange. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

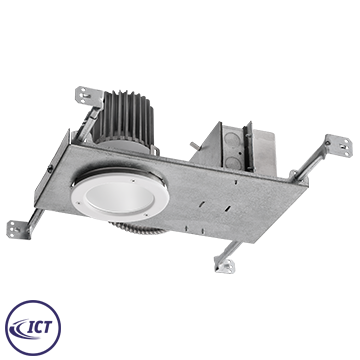

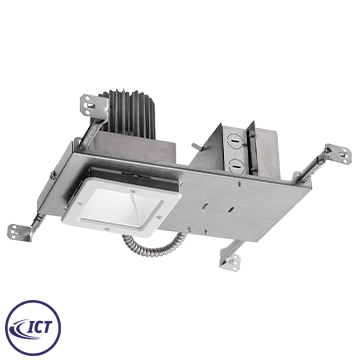

| Model #: | HADL4-ICT |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Locker Rooms Multifamily Housing Dorm Rooms Schools and Universities Foyers and Lobbies Natatoriums Canopy |
| Lens Type(s): | .125" Clear Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 4" |
| Listings: |
Technical Specifications
| Electrical |
Single, white disinfection mode. Serviceable white and 405nm Indigo LED array. Available 3200K, 3700K and 4300K color temperature with 3-step MacAdam variation allowance. Minimum 82 CRI standard. 120, 277 and 347VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current drivers (<10% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.2mA maximum source current. Optional eldoLED ECOdrive DALI-2/LEDcode2 driver with 1-100% range.
|
|---|---|
| Heatsink | Die-cast aluminum with external radial fins for natural convection. |
| Listings |
Luminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP65 rating per IEC60598. Optional CCEA compliance. EPA Est. No. 99283-WI-1.
|
| Optical | Diffused tempered-glass upper lens. 1/8" clear polycarbonate flush lens at ceiling trim with continuous seal to trim ring. Available with various reflector finishes. See Ordering Information for available options. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com. |
| Rough-In Frame | 18-gauge die-formed, corrosion-resistant steel. Vertically adjustable collar accommodates ceiling thicknesses up to 1.5", adjustable post-installation. Adjustable mounting bars for installation with wood and steel frame joists and T-grid ceiling systems spaced up to 24" on center. Quick-access junction box accessible post-installation from above and below ceiling. Includes (5) 1/2" knock-outs to allow straight conduit runs. |
| Trim/Housing Section | IP-rated housing section incorporates the heat sink, LED module, optics and lower trim. Flush lens trim secured with three (Round) or four (Square) Torx® tamper-resistant, captive fasteners. Closed-cell gasketing at ceiling flange. See Trim Ordering Information for available options. |
| Warranty | Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
