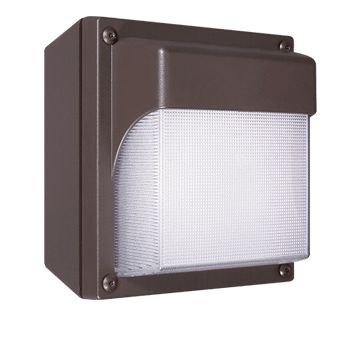

Herculux for Institutional High Abuse
| Model #: | H1212FD |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Multifamily Housing Walkways Restrooms Stairwells Showers Dorm Rooms Schools and Universities Corridors Sally Ports Exteriors and Entryways Gymnasiums and Multipurpose Rooms Natatoriums Manufacturing |
| Lens Type(s): | Pearlescent Polycarbonate |
| Lamp Type(s): | LED |
| Size(s): | 12"×12" |
| Listings: |
Technical Specifications
| Electrical | Available in 3500K, 4000K, and 5000K color temperatures, 80 CRI. 120-277VAC or 347VAC, 50/60Hz electrical input with high power factor electronic, constant-current driver (>.90 PF). Standard 0-10V dimming with 1-100% range; maximum driver source of 200 μA. Optional embedded microwave motion sensor (MS) has factory default settings of 20 minute time out, dims down to 30%. |
|---|---|
| Gasket | Die-cut closed cell neoprene gasket seals die-cast housing to mounting surface. Refractor inset into housing and sealed to integral ledge with one “O” ring closed cell silicone gasket. |
| Hardware | Four captive stainless steel Torx® with center pin fasteners secure refractor/eyelid to housing. Shoulder fastener design and washer prevent lens/eyelid stress due to over torquing. |
| Housing | One-piece heavy duty die-cast, low-copper aluminum housing. Housing flange interlocks around lens producing maximum moisture deflection and resistance to prying. Housing provided with four standoff mounting holes. One 3/4" IPS tapped hole on back of housing. Standard housing in dark bronze TGIC polyester powder coat – 5-stage pre-treatment. Two 3/4" IPS tapped and plugged holes on sides of housing – see Cross Section/Details. |
| Installation | Standard four-point mounting required for Peace of Mind Guarantee®. |
| Lens | One-piece wraparound lens (UV-stabilized, high impact, virgin injection molded polycarbonate). Smooth exterior, prismatic interior. Nominal thickness: 0.125". |
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. Luminaire tested to an IK10 impact protection rating per IEC 60068-2-75:1997-08. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Reflector | High reflectance painted aluminum. |
| Warranty | One (1) year warranty against defects in materials and workmanship. Five (5) year warranty on LED lamps and driver for defects resulting in a fixture lumen depreciation of 30% or greater. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
