SimpleSeal
| Model #: | ESEDI |
|---|---|
| Features: |
|
| Application(s): | Anterooms Containment Areas Laboratories Research and Development |
| Lens Type(s): | .125" #12 Prismatic Polycarbonate .187" Prismatic Polycarbonate .125" Clear Polycarbonate Specified Lens |
| Lamp Type(s): | LED |

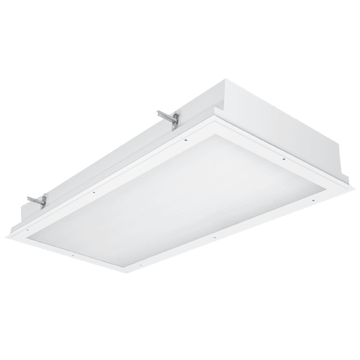

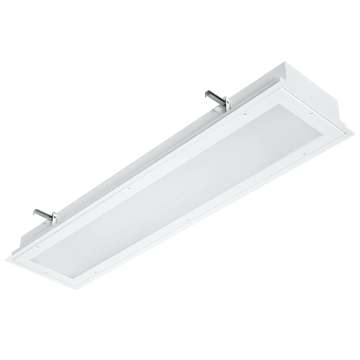

| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | 18-gauge CRS. One-piece inset construction welded corners. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Lens frame secured to housing with continuous hinge and (2) for 2×2, (3) for 1×4, 2×4 captive mounted Phillips head stainless steel fasteners. Closed cell extruded silicone gasket sealsdoorframe to housing. |
|---|---|
| Electrical | Available 3000K, 3500K, 4000K and 5000K color temperatures. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 3-100% range. |
| Housing | Standard 24-gauge (optional 20-gauge) cold rolled steel, hole-free, one-piece, seam-welded construction.18-gauge housing flange with mitered and welded corners. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Adjustable swing-out mounting brackets standard. |
| Lens | .125" P12 acrylic lens sealed to doorframe with silicone sealant and secured with continuous lens retention system. Lens orientation – smooth side out. |
| Listings | UL and CUL Listed for Wet Location. UL certified IP65 per IEC 60598. CCEA approved. ESEDI is participating in Declare. |
| Lumen Data | CSEDI14 Lumen Data |
| Optics | Symmetric optic includes diffused, impact-resistant acrylic lens. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
