Education

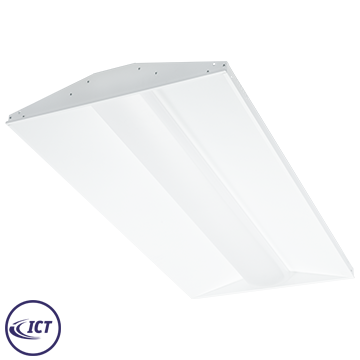

| Model #: | EGT-ICT |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Schools and Universities Corridors |
| Lens Type(s): | Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Electrical |
Single- and Dual-Mode ICT Serviceable mid-power white and 405nm Indigo LED array. Available 3200K, 3700K and 4300K color temperatures with 3-step MacAdam variation allowance. Minimum 82 CRI standard. 120-277VAC and 347VAC electrical input with serviceable high power factor electronic, constant-current drivers (0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. 165μA maximum source current. Single-Mode ICT provides a single, white disinfection operational mode. Dual-Mode ICT provides two operational modes based on room occupancy. White Disinfection Mode is a white LED array for ambient lighting plus a simultaneous low-power 405nm LED array for low-level, continuous and safe environmental disinfection. Indigo Disinfection Mode is a higher-level 405nm array for continuous safe environmental disinfection during periods of room vacancy. The operational mode is determined via internal low-voltage device based upon the input signal provided by an external control
|
|---|---|
| Housing | Die-formed 24-gauge steel construction. Low-gloss white TGIC powder coat finish with five-stage pre-treatment. |
| Installation |
Suitable for Type-IC recessed ceiling installation into 9/16”, 15/16” and slot-T lay-in grid ceilings and flanged drywall ceilings with included flange adapter kit. See Ordering Information for selection. Removable wiring access plate with (2) 7/8” Dia knockouts. Suitable for 0°C to 25°C ambient temperature environments.
|
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location and IC installations. NSF2 Splash/Non-Food Zone. RoHS compliant. |
| Optics | Snap-in, one-piece extruded frost DR acrylic diffuser. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)

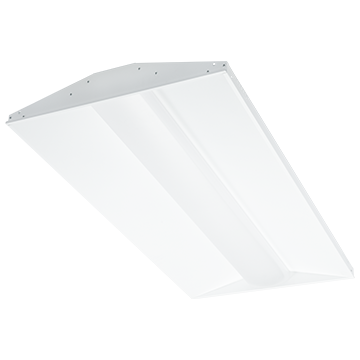

| Model #: | EGT |
|---|---|
| Features: |
|
| Application(s): | Parks and Recreation Schools and Universities Corridors |
| Lens Type(s): | Frost High Impact Acrylic |
| Lamp Type(s): | LED |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls |
120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current driver (<10% THD, >0.90PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); maximum 165 μA source current.
|
|---|---|
| Housing | Die-formed 24-gauge steel construction. Low-gloss white TGIC powder coat finish with five-stage pre-treatment. |
| Installation |
Suitable for Type-IC recessed ceiling installation into 9/16”, 15/16” and slot-T lay-in grid ceilings and flanged drywall ceilings with included flange adapter kit. See Ordering Information for selection. Removable wiring access plate with (2) 7/8” Dia knockouts. Suitable for 0°C to 25°C ambient temperature environments.
|
| LED Module |
Serviceable mid-power LED array. Minimum 82 CRI standard (R9 >20). See Ordering Information for available color temperature options. Maximum 3-step MacAdam variation allowance.
|
| Listings | Luminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location and IC installations. NSF2 Splash/Non-Food Zone. RoHS compliant. |
| Optics | Snap-in, one-piece extruded frost DR acrylic diffuser. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
