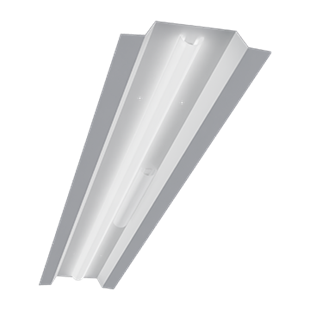

Mighty Mac

Model #:	DFK
Features:	Designed to fit directly into existing legacy Kenall fixtures without modifications Updates fixtures with long-lasting specification grade components Easily connects to existing wiring Warm 2700K or amber night light options 5 Year Warranty
Application(s):	Cells Dayrooms (Correctional) Cafeterias Washrooms (Correctional) Corridors Sally Ports Behavioral Health Recreational (Correctional-Indoor)
Lamp Type(s):	LED
Listings:

Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Driver/Controls	120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current driver (0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities; 0.4mA maximum source current.
Installation	Simple hand tools required for removal and replacement. No modifications required.
LED Module	Commercially available and serviceable mid-power LED array(s). Minimum 80 CRI standard (R9>0), consult factory for optional 90CRI (R9>50). Available 3000K, 3500K, 4000K and 5000K color temperatures with maximum 3-step MacAdam variation allowance.
Listings	Luminaire retrofit kits are classified to the UL1598C standard by Intertek Testing Services for Damp Locations. Build America, Buy America Act compliant.
Reflector	Prime grade aluminum material finished in high reflectance gloss white. Die-formed to match existing distribution and mounting locations.
Warranty	Limited five (5) year warranty.
