| Controls | Optional embedded microwave motion sensor. Remote adjustment for dim level, timeout period and sensor sensitivity settings. Factory default is 30% dimming and 20min. timeout. Sensor operates at 5.8 GHz (continuous-wave radar) and provides 360° coverage at various mounting heights and coverage areas. Other Wattstopper or third-party control options available upon request. To see the full list of compatible controls, click here. |
|---|
| Doorframe | Standard one-piece, 20-gauge cold-rolled steel with inset-style construction and seam-welded corners. Gloss white TGIC polyester powder coat finish with 5-stage pre-treatment. Doorframe secured to housing with galvanized steel aircraft cables and captive, flush-mounted Phillips-head fasteners. Closed-cell neoprene gasket seals doorframe to housing. |
|---|
| Driver | 120-277VAC and 347VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.90 PF). Standard 0-10V dimming with 10-100% range without dim-to-dark capabilities; 0.4mA max. source current per luminaire. Optional 0-10V dimming to 1% with dim-to-dark capabilities; 0.2mA max. source current per luminaire. Optional DALI-2 DT6 driver with 1-100% dimming range without dim-to-dark capabilities. |
|---|
| Housing | Constructed of die-formed, fully seam-welded 24-gauge cold rolled steel. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
|---|
| Installation | Suitable for Type-IC recessed ceiling installation into 9/16" and 15/16" lay-in grid ceilings. Wire access panel on rear of housing allows wire connections without door removal. See Accessories for adapter kit for drywall ceiling installation. Suitable for -20°C to 40°C ambient environments, unless otherwise noted. |
|---|
| LED Module | Serviceable back-lit LED array. Standard 90 CRI min. (R9 > 50). See Ordering Information for available color temperature options. 3 SDCM color variation max. |
|---|

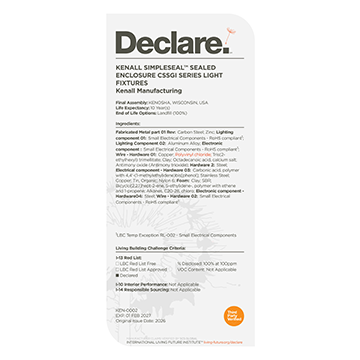

| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratories for Indoor Wet Locations. NSF2 Splash/Non-Food Zone. CCEA Approved. Suitable for ISO5-8 cleanroom environments. Optional IP65 certified per IEC 60598. CSSGI is participating in Declare. Build America, Buy America Act compliant. |
|---|
| Optics | High-impact diffuse acrylic lens, nominal .125" thick. Continuous seal to perimeter of door aperture with RTV silicone and mechanical retention bracketry. |
|---|
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
|---|
| Warranty | Limited five (5) year LED warranty. |
|---|
