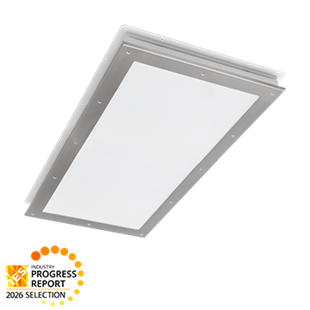

SimpleSeal
| Model #: | CSSETO |
|---|---|
| Features: |
|
| Application(s): | Pharmaceutical Vivariums Laboratories Research and Development Meat Processing Facilities Industrial Food Processing Facilities Manufacturing Food Processing Industrial |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls |
120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current drivers (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. 0.4mA maximum driver source current. Serviceable from above or below ceiling structure.
|
|---|---|
| Finish | All painted metal surfaces finished after fabrication in gloss white TGIC polyester powder coat with 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Housing | Internal housing and room-side ceiling flange constructed of seam-welded, die-formed 18-gauge CRS. Walkable side ceiling flange constructed of die-formed and seam-welded 16-gauge CRS, secured to housing during installation with provided hardware dependent on ceiling thickness. See Ordering Information for ceiling thickness selection - for use with 2"-4" ceiling systems. |
| Installation | Recessed installation into 2", 3" or 4" thick modular structural ceiling panels. One 7/8" KO on each side of housing for conduit runs internal to ceiling system. One 7/8" KO on top of luminaire for vertical conduit entry into luminaire, or horizontal surface run conduit entry via TCE option which provides a surface junction box and sealed feed into luminaire. Tested to 900lbs of uniform loading without damage or deflection of the luminaire structure. Suitable for -30°C to 40°C ambient environments, unless otherwise noted. |
| LED Module | Serviceable back-lit LED array. Standard 90CRI min. (R9>50). See Ordering Information for available color temperature options. Serviceable from above or below ceiling structure. |
| Lens |
High impact diffuse acrylic lens, nominal .125" thick. Sealed to perimeter ledge of door aperture using RTV silicone and secured with continuous brackets.
|
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratories for recessed ceiling insulation contact (IC-rated) and Indoor Wet Location installations. IP66 rating per IEC60598. NSF2 Splash/Non-Food Zone rated. For use in spaces that are ISO 14644-1 rated ISO3-9. Build America, Buy America Act. Compliant. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
| Room-side Door | Standard one-piece, 18-gauge Type 304 stainless steel with 4B brushed finish. Other materials available. Die-formed with welded corners and a 60° progressive perimeter bend construction. Secured by countersunk flush-head stainless steel screws. Self-retracting safety cable supports doorframe during room-side servicing. |
| Top Access Door | 16-gauge door with welded stiffening rails and die-formed perimeter. One-piece, closed cell extruded Nitrile gasketing seals doorframe to housing. Secured to housing with stainless steel counter-sunk flush-head screws. Single, hinged D-ring flush with walkable surface provides lifting point. Closed cell silicone gasket seals door to housing. Provides access to service all internal electrical components. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
Additional Resources

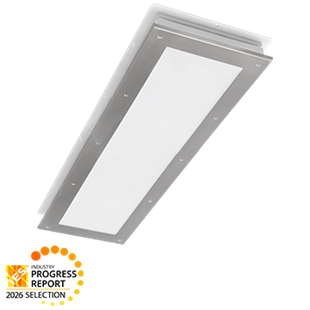

| Model #: | CSSETO-NS |
|---|---|
| Features: |
|
| Application(s): | Pharmaceutical Vivariums Laboratories Research and Development Meat Processing Facilities Industrial Food Processing Facilities Manufacturing Food Processing Industrial |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Driver/Controls |
120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current drivers (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities. 0.4mA maximum driver source current. Serviceable from above or below ceiling structure.
|
|---|---|
| Finish | All painted metal surfaces finished after fabrication in gloss white TGIC polyester powder coat with 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Housing | Internal housing and room-side ceiling flange constructed of seam-welded, die-formed 18-gauge CRS. Walkable side ceiling flange constructed of die-formed and seam-welded 16-gauge CRS, secured to housing during installation with provided hardware dependent on ceiling thickness. See Ordering Information for ceiling thickness selection - for use with 2"-4" ceiling systems. |
| Installation | Recessed installation into 2", 3" or 4" thick modular structural ceiling panels. One 7/8" KO on each side of housing for conduit runs internal to ceiling system. One 7/8" KO on top of luminaire for vertical conduit entry into luminaire, or horizontal surface run conduit entry via TCE option which provides a surface junction box and sealed feed into luminaire. Tested to 900lbs of uniform loading without damage or deflection of the luminaire structure. Suitable for -30°C to 40°C ambient environments, unless otherwise noted. |
| LED Module | Serviceable back-lit LED array. Native 590 nm Amber, 630 nm Red and 660 nm Deep Red (non phosphor-converted) LED options. Narrow bandwidth native sources provide optimal control over spectral emissions. Available as single native color or separately circuited native color and white lamping. Standard 90CRI min. (R9>50). See Ordering Information for available color temperature options. Serviceable from above or below ceiling structure. |
| Lens |
High impact diffuse acrylic lens, nominal .125" thick. Sealed to perimeter ledge of door aperture using RTV silicone and secured with continuous brackets.
|
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratories for recessed ceiling insulation contact (IC-rated) and Indoor Wet Location installations. IP66 rating per IEC60598. NSF2 Splash/Non-Food Zone rated. For use in spaces that are ISO 14644-1 rated ISO3-9. Build America, Buy America Act. Compliant. |
| Photometrics | Photometry tested to the IESNA LM-79-08 standard. For additional photometric data, please go to www.kenall.com. |
| Room-side Door | Standard one-piece, 18-gauge Type 304 stainless steel with 4B brushed finish. Other materials available. Die-formed with welded corners and a 60° progressive perimeter bend construction. Secured by countersunk flush-head stainless steel screws. Self-retracting safety cable supports doorframe during room-side servicing. |
| Top Access Door | 16-gauge door with welded stiffening rails and die-formed perimeter. One-piece, closed cell extruded Nitrile gasketing seals doorframe to housing. Secured to housing with stainless steel counter-sunk flush-head screws. Single, hinged D-ring flush with walkable surface provides lifting point. Closed cell silicone gasket seals door to housing. Provides access to service all internal electrical components. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
