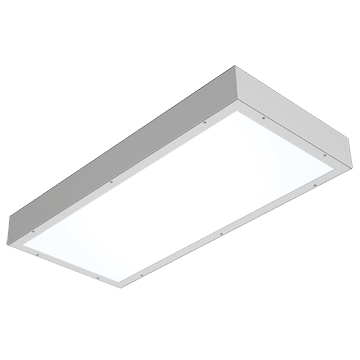

SimpleSeal
| Model #: | CSESI |
|---|---|
| Features: |
|
| Application(s): | Kitchen and Food Prep Biosafety and Containment Cafeterias Anterooms Cleanrooms Containment Areas Laboratories Research and Development Natatoriums Meat Processing Facilities Industrial Food Processing Facilities |
| Lens Type(s): | .125" Prismatic Acrylic .125" #12 Prismatic Polycarbonate .187" Prismatic Polycarbonate .125" Clear Polycarbonate .250" Textured Tempered Glass Specified Lens .125" High-Impact Clear Acrylic .125" #12 Prismatic High Impact Acrylic UV Filtering (Specify) .125" P12 Acrylic with EMI Grid, Prismatic Side Out |
| Lamp Type(s): | LED |
| Size(s): | 1'x4' 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Doorframe | 18-gauge CRS. One-piece inset construction welded corners. White TGIC polyester powder coat finish – 5-step pre-treatment.Salt spray test: 1,000 hours; Reflectance: 92%. Doorframe secured to housing with aircraft cables and (8) for 2×2 captive mounted Phillips head stainless steel fasteners. |
|---|---|
| Doorframe Gasket | Closed cell extruded silicone gasket seals doorframe to housing. |
| Electrical | Available 3000K, 3500K, 4000K and 5000K color temperatures, 82 CRI; maximum 3-step MacAdam variation allowance. 120-277VAC and 347VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V; 600μA maximum source current per circuit). Optional 0-10V dimming with 0.1-100% range and dim-to-dark capabilities via eldoLED SOLOdrive series driver (n/a 347V input; ≤0.5V required from dimming control for dim-to-dark operation; 800μA max. source current). Consult factory for fluorescent options. |
| Housing | 18-gauge CRS. Hole-free one-piece seam welded construction. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Four .312" holes for surface mounting. |
| Lens | .125" P12 acrylic lens sealed to doorframe with silicone sealant and secured with continuous lens retention system. Lens orientation – smooth side out. |
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratories for Wet Location. Certified IP65 per IEC 60598. FED-STD-209E/Class 1 (ISO 3) Cleanrooms. NSF2 Splash/Non-Food Zone. Suitable for biosafety labs rated BSL 1 and 2. CSESI is participating in Declare. |
| Wiring Access | Standard wiring access hole on end of luminaire. See TWA Option for Top Access Wiring hole. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
