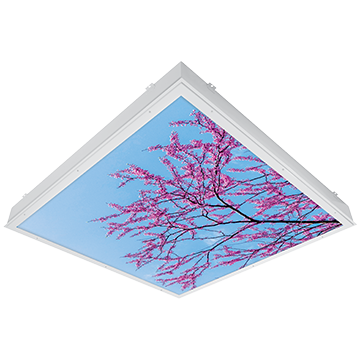

MedMaster CleanScene
| Model #: | CS44 |
|---|---|
| Features: |
|
| Application(s): | Nursing Stations Patient Rooms Foyers and Lobbies Corridors |
| Lamp Type(s): | LED |
| Size(s): | 4'x4' |
| Listings: |
Technical Specifications
| Doorframe | 18-gauge aluminum. One-piece inset construction welded corners. TGIC polyester powder coat finish in standard white or optional black, with five-stage pre-treatment. Salt spray test: 1,000 hours. Antimicrobial finish optional on all exposed painted components of installed luminaire. Doorframe secured to housing with aircraft cables and 8 captive mounted Phillips-head stainless steel fasteners. Closed cell Neoprene/EPDM/SBR gasket seals doorframe to housing. |
|---|---|
| Electrical | High-brightness, 6500K LED light source. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (0.95 PF). Standard 0-10V dimming with 1-100% range; 250µA maximum source current. EMC meets FCC Part 15, Class A limits. |
| Housing | 18-gauge aluminum. Hole-free one-piece seam welded construction. TGIC polyester powder coat finish in standard white or optional black, with five-stage pre-treatment. Salt spray test: 1,000 hours. Antimicrobial finish optional on all exposed painted surfaces of installed luminaire. |
| Installation | Designed for 1" and 1.5" grid. (Housing includes hanging brackets to secure housing with wire to super structure). |
| Lens | .125" acrylic lens sealed to doorframe with silicone sealant. .125" white acrylic diffuser provides uniform surface illuminance. All lenses secured with continuous lens retention system. |
| Listings | UL and CUL Listed for Wet Location. UL certified IP65 per IEC 60598. NSF2 Splash/Non-Food Zone. Build America, Buy America Act compliant. |
| Regressed Frame Kit | One-piece, .08" thick, seamless aluminum construction TGIC polyester powder coat finish in matte white or black. Provides easy-to-install, architectural skylight effect by raising fixture 2-inches above standard 1" or 1.5" T-bar grid ceiling. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
