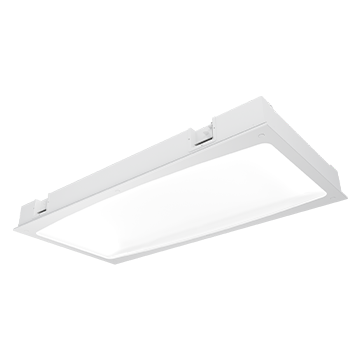

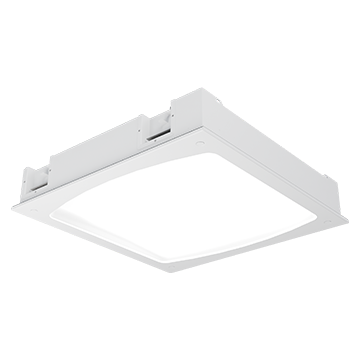

MedMaster Pillow
| Model #: | BHPCK |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Patient Rooms Foyers and Lobbies Isolation Areas Corridors Behavioral Health |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Controls | Optional LVC and LVCD provides a low-voltage patient interface, controlling the lamp source and optional night light with (LVCD) and without (LVC) dimming control. |
|---|---|

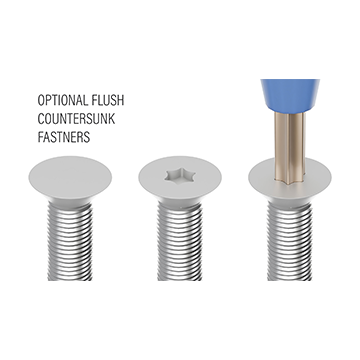

| Door Assembly | One-piece fabricated 16ga CRS doorframe with TGIC polyester powder-coat finish with five-stage pre-treatment. Curved-sided aperture. Doorframe secured to housing with flush mounted, color-matched tamper-resistant Torx fasteners or flush head Torx fasteners with retractable, spring-loaded recess for tool insertion. Closed-cell gasketing seals doorframe to housing. Continuous outer lens retention with doorframe. |
| Driver | 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current drivers (<20% THD, >0.90 PF). Ambient, Reading and Exam functions are separately circuited, except when ordered with the low-voltage controller options (LVC/LVCD). Full output mode is achieved by powering all lamping circuits simultaneously. Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities 0.8mA maximum source current. Optional eldoLED ECOdrive DALI drivers with 1-100% range. |
| Housing | Fabricated 18ga cold rolled steel. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Suitable for recessed ceiling installation into drywall (flange) or 9/16" and 15/16" lay-in grid ceilings. Flange installation utilizes included adjustable swing-out mounting brackets. Wire access panel on rear of housing allows electrical connections without door removal; includes one 7/8" hole and one 7/8" knockout. Suitable for -20°C to 40°C ambient environments, unless otherwise noted. |
| LED Module |
Serviceable multi-channel back-lit LED array provides ambient, examination and reading functionality. Standard 90CRI min. (R9>50). See Ordering Information for available color temperature options. Optional nightlight in 590nm native amber or 2700K, 80CRI white.
|
| Listings |
Luminaire is certified to UL standards by Intertek Testing Laboratories for recessed ceiling insulation contact (IC-rated) and Indoor Wet Location installations. IP65 rating per IEC60598. NSF2 Splash/Non-Food Zone rated.Luminaire tested to an IK10 impact protection rating per IEC 60068-2-75:1997-08. Standard CCEA compliance. Build America, Buy America Act compliant.
|
| Optics | Vacuum-formed, impact-resistant and high-efficiency diffused polycarbonate lens. |
| Photometrics | Photometry tested to the IESNA LM-79-24 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
Downloads
Product Documentation
Installation Files
Photometry (IES)
Additional Resources

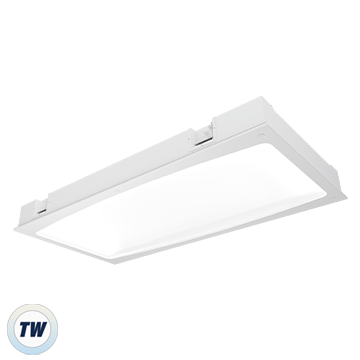

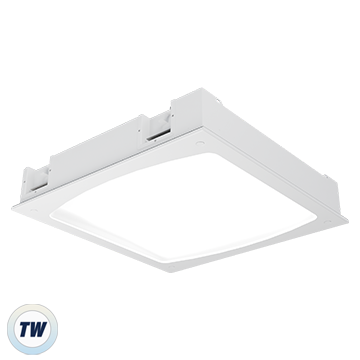

| Model #: | BHPCK-TW |
|---|---|
| Features: |
|
| Application(s): | Cafeterias Patient Rooms Foyers and Lobbies Isolation Areas Corridors Behavioral Health |
| Size(s): | 2'x2' 2'x4' |
| Listings: |
Technical Specifications
| Controls | Optional LVCD provides a low-voltage patient interface, controlling the lamp source and optional night light with dimming control. CCT control with analog (0-10V) control types, whether with or without the LVCD, is a separate control line that must be connected to a device supporting 0-10V adjustment. See chart on Page 2 for further details. |
|---|---|
| Door Assembly | One-piece fabricated 16ga CRS doorframe with TGIC polyester powder-coat finish with five-stage pre-treatment. Curved-sided aperture. Doorframe secured to housing with flush mounted, color-matched tamper-resistant Torx fasteners or flush head Torx fasteners with retractable, spring-loaded recess for tool insertion. Closed-cell gasketing seals doorframe to housing. Continuous outer lens retention with doorframe. |
| Driver | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Ambient, Reading and Exam functions are separately circuited, except when ordered with the low-voltage controller option (LCVD). Full output mode is achieved by powering all lamping circuits simultaneously. Serviceable, constant current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. Refer to charts on page 2 for further details. |
| Housing | Fabricated 18ga cold rolled steel. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
| Installation | Suitable for recessed ceiling installation into drywall (flange) and 9/16" and 15/16" lay-in grid ceilings. Flange installation utilizes included adjustable swing-out mounting brackets. Wire access panel on rear of housing allows electrical connections without door removal; includes one 7/8" hole and one 7/8" knockout. Suitable for -20°C to 40°C ambient environments, unless otherwise noted. |
| LED Module | Serviceable multi-channel back-lit array with tunable-white, mid-power LEDs. 2700K through 5000K CCT adjustment range with a two-point path. Minimum 90 CRI standard (R9 >50).Optional nightlight in 590nm native amber or 2700K, 80CRI white. |
| Listings |
Luminaire is certified to UL standards by Intertek Testing Laboratories for recessed ceiling insulation contact (IC-rated) and Indoor Wet Location installations. IP65 rating per IEC60598. NSF2 Splash/Non-Food Zone rated. Luminaire tested to an IK10 impact protection rating per IEC 60068-2-75:1997-08. Standard CCEA compliance. Build America, Buy America Act compliant.
|
| Optics | Vacuum-formed, impact-resistant and high-efficiency diffused polycarbonate lens. |
| Photometrics | Photometry tested to the IESNA LM-79-24 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
| Warranty | Limited five (5) year LED warranty. |
This product may be able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
