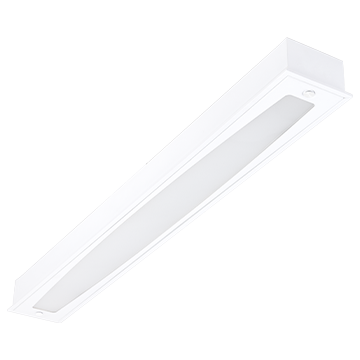

| Controls | Optional LVC and LVCD provides a low-voltage patient interface, controlling the lamp functions with (LVCD) and without (LVC) dimming control. Paired installations with the LVC/LVCD options should be ordered with equal quantities of Type 'M' and 'S' units. AC power feed required to both. Lamp control intensity originates from the LVC located in the 'M' (Master) unit. Control wiring method between luminaires supplied by others. Additional option for secondary conduit entry intended for Class 2 control wiring. CCT control with analog (0-10V) control types, whether with or without the LVC/LVCD, is a separate control line that must be connected to a device supporting 0-10V adjustment. See chart on Page 2 for further details. |
|---|
| Door Assembly | One-piece fabricated 18ga CRS doorframe with TGIC polyester powder-coat finish in selected color, with five-stage pre-treatment. Curved-sided aperture. Doorframe secured to housing with internal torsion springs. Room side access to internal components via two (2) color-matched, self-retracting hand pull pins located at each end of the doorframe. Closed-cell silicone gasketing seals doorframe to housing. Gasketed seal between lens and doorframe. |
|---|
| Driver | 120-277VAC, 50/60Hz electrical input (PF ≥ 0.9, THD < 20%). Minimum 85% electrical efficiency. Ambient and Exam functions are separately circuited, except when ordered with the low-voltage controller options (LVC/LCVD). Full output mode is achieved by powering both lamping circuits simultaneously. Serviceable, constant current multi-channel programmable driver with dual analog (0-10V) control inputs for intensity and CCT. Optional DALI (Type 8) driver. Logarithmic intensity profile with 0.1-100% range, with dim-to-dark capabilities. Linear profile on CCT adjustment. Refer to charts on page 2 for further details. |
|---|
| Housing | Sealed, precision-formed 24ga cold rolled steel. White TGIC polyester powder coat finish – 5-step pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. |
|---|
| Installation | Suitable for recessed ceiling installation into 9/16" and 15/16" lay-in grid ceilings. Gasketed wire access panel on rear of housing allows electrical connections without door removal; includes one 7/8" hole and one 7/8" knockout. See Accessories for adapter kit for drywall ceiling installation. Suitable for -20°C to 40°C ambient environments, unless otherwise noted. |
|---|

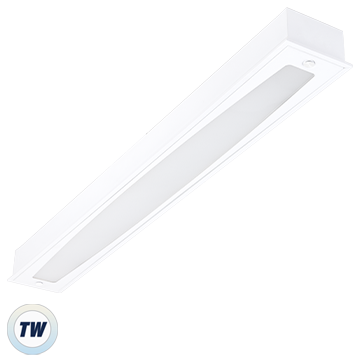

| LED Module | Serviceable multi-channel back-lit array with tunable-white, mid-power LEDs for both ambient and examination functions. 2700K through 5000K CCT adjustment range with a two-point path. Minimum 90 CRI standard (R9 >50). |
|---|
| Listings | Luminaire is certified to UL standards by Intertek Testing Laboratories for recessed ceiling insulation contact (IC-rated) and Indoor Wet Location installations. IP64 rating per IEC60598. NSF2 Splash/Non-Food Zone rated. Standard CCEA compliance. |
|---|
| Optics | Flat, impact-resistant and high-efficiency diffused acrylic lens. |
|---|
| Photometrics | Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric data, please go to www.kenall.com. |
|---|
| Warranty | Limited five (5) year LED warranty. |
|---|
