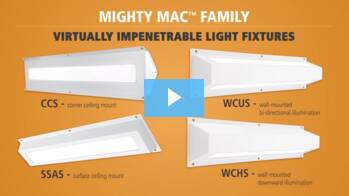

Mighty Mac

Model #: CCS
  • Corner ceiling mount – nominal 7" x 36"
  • Innovative door-free design – eliminating possibility of contraband concealment or tampering
  • Designed for permanent installation
  • One-piece, TIG-welded housing with reinforced, continuous lens retention
  • Thermally-managed LED lamp sources and under-stressed driver to promote long life expectancy
Dayrooms (Correctional)
Sally Ports
Containment Areas
Recreational (Correctional-Indoor)
Lens Type(s):No Lens
.187" Clear Polycarbonate
.187" Clear Tempered Glass
.250" Clear Polycarbonate
.250" Clear Tempered Glass
.375" Clear Polycarbonate
.375" Clear Tempered Glass
.125" Clear Polycarbonate
.500" Clear Polycarbonate
.500" Clear Tempered Glass
Symmetric, Diffused DR Acrylic
Lamp Type(s):LED
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

ControlsOptional embedded microwave motion sensor (MS) has factory default settings of 20 minute time out, dims down to 30%.
Driver/Controls120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant-current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range and dim-to-dark capabilities (non dim-to-dark with 347V); maximum 165 µA maximum source current. Optional eldoLED ECOdrive DALI drivers with 1-100% range.
HousingOne-piece die-formed prime grade material as specified – see Ordering Information. Cold-rolled steel and painted stainless steel options are finished with a gloss white TGIC polyester powder coat finish with 5-stage pre-treatment.  Continuous seam-welded and smoothed corners with no post grinding (TIG).  Housing resistant to penetration and contraband concealment. One-piece concealed lens retention bracket.

InstallationCeiling installation via external mounting holes using six (6) high-security bolts (provided by others).
LED ModuleServiceable mid-power LED array. 3500K, 4000K and 5000K color temperature options with maximum 3-step MacAdam variation allowance. Minimum 82CRI standard (R9>20) with 90CRI (R9>50) optional.
ListingsLuminaire is certified to UL Standards by Intertek Testing Laboratory for Damp Location.
OpticsHigh-efficiency diffused, impact-resistant acrylic inner lens with clear polycarbonate or tempered glass outer lens.  See Ordering Information for selection options.  Maximum 0.625" overall thickness.
WarrantyLimited five (5) year LED and driver warranty.

This product is able to comply with the latest domestic preference legislation, such as the Buy American Act (BAA), Trade Agreement Act (TAA), Build America, Buy America Act (BABA), and others.
