TDL6

LuxTran Downlights for Transportation (Flush Lens)

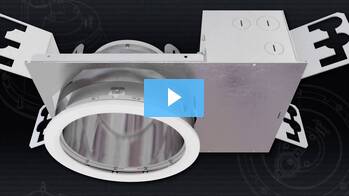

Main Product Image
Model #: TDL6
Features:
  • 6" sealed, recessed downlight with flush lens trim
  • Corrosion-resistant frame and trim construction
  • Peace of Mind Guarantee™ against breakage
  • Delivered lumens: 794 - 5,305 lm
  • 1% Dimming via 0-10V control
Application(s):Transportation Platforms
Lens Type(s):.125" Clear Polycarbonate
.125" High-Impact Clear Acrylic
Lamp Type(s):LED
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

ElectricalLED array available in multiple CCT and CRI combinations with a maximum 3-step MacAdam variation allowance. See Trim Ordering Information for available options. 120-277VAC or 347VAC, 50/60Hz electrical input with serviceable constant current driver (<20% THD, >0.90 PF). Minimum 85% driver efficiency. Standard 0-10V dimming with 1-100% range; 200µA max. source current.
HeatsinkDie-cast aluminum with external radial fins for natural convection.
InstallationSuitable for ambient temperature temperatures of -30oC to +40oC.
ListingsLuminaire is certified to UL standards by Intertek Testing Laboratory for non-IC and Wet Location installations. IP65 rating per IEC60598.
OpticalHigh-Efficiency mixing chamber design with regressed diffused tempered-glass lens producing uniform light output. Available with various reflector distribution patterns and finishes. Flush lens trim options include a clear lens. See distribution and reflector finish ordering information for available options.
PhotometricsPhotometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory.  For photometric information, go to www.kenall.com.
Rough-In Frame18-gauge die-formed, type 304 stainless steel construction. Vertically adjustable collar accommodates ceiling thicknesses up to 2", adjustable post-installation. Universal mounting brackets accept 3/4" and 1-1/2" lathers channel, 1/2" EMT conduit and hanger bars. Quick-access junction box accessible post-installation from above and below ceiling. Includes (4) 1/2" and (2) 3/4" knock-outs to allow straight conduit runs. Listed for (8) 12AWG, 90oC conductors and feed-thru branch wiring. Provided with FMC with electrical quick-connect to Trim Section.
Trim/Housing SectionIP-rated housing section incorporates the heat sink, LED module, optics and stainless steel lower trim. Lens trim secured with four (4) Torx® tamper-resistant, captive fasteners. See trim ordering information for available options.
WarrantyPeace of Mind Guarantee® against breakage. Five (5) year warranty against mechanical defects. Five (5) year warranty on LED lamps and power regulation components for defects resulting in a fixture lumen depreciation of 30% or greater.

Where you see this symbol, the Kenall product shown is manufactured in the USA with components purchased from US suppliers, and meets the Buy American requirements under the ARRA. Kenall has not determined the origin of its domestically purchased components or the subcomponents thereof.
