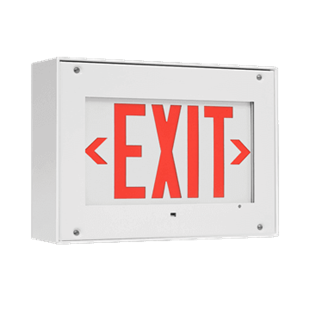

MMEX

Mighty Mac

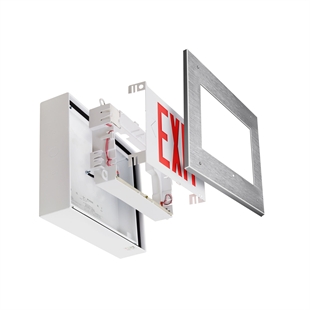

Main Product ImageMMEX_EV001_ss.jpg
Model #: MMEX
Features:
  • Surface mount – wall or ceiling
  • 14-gauge cold rolled steel or stainless steel housing
  • Indirect Red or Green LED
  • Single and Double Face
Application(s):Parks and Recreation
Packaging and Staging
Dayrooms (Correctional)
Multifamily Housing
Cafeterias
Restrooms
Showers
Foyers and Lobbies
Corridors
Sally Ports
Behavioral Health
Recreational (Correctional-Indoor)
Exit
Lamp Type(s):LED
Listings:
Specifications are subject to change without notice. Please consult your Kenall Customer Service for help with special requests at (800) 4 Kenall.

Technical Specifications

DoorOne-piece die-formed prime grade 14-gauge. Corners continuously seam welded and smooth with no post grinding (TIG).
Electrical624 nm Red or 527 nm Green LED light source. Electrical components mounted to removable high impact, injection molded polycarbonate chassis. Exit Ready – can power one Kenall METSS Satellite Exit.
FastenersHardened security screws as specified – see ordering information.
FinishTGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. See Options for black exterior.
HousingOne-piece die-formed prime 14-gauge grade material as specified – see ordering information. Corners continuously seam welded and smooth with no post grinding (TIG).
LegendLegend illuminated by internal high output LEDs. Lettering six inches high with .750 inch stroke. Internal panels with stencil cut letters and red or green filter panel. External panel .188 inch thick clear polycarbonate. Universal arrows.
ListingsUL and CUL listed for Wet Location. UL Classified IP65 per IEC 60598. Meets or exceeds UL924 and NFPA 101 Standards. Meets or exceeds CSA and NRCAN requirements.
OptionsSealed nickel-cadmium Emergency Battery Pack (EL) with standard deep cycle battery conditioning, self test and self diagnostic circuitry, remote laser activated test switch, protected mechanical test switch and status indicator. Provides 120 minutes of emergency operation. Emergency Battery Pack (EL) suitable for 10°C to 45°C (50°F to 113°F). Cold Weather Emergency Battery Pack (CEL) suitable for -45°C to 45°C (-49°F to 113°F). (When used with a Kenall METSS, this fixture provides 90 minutes of emergency operation.)

Where you see this symbol, the Kenall product shown is manufactured in the USA with components purchased from US suppliers, and meets the Buy American requirements under the ARRA. Kenall has not determined the origin of its domestically purchased components or the subcomponents thereof.
